Kia Optima DL3: Manual heating and air conditioning / Sunroof inside air recirculation, Fan speed control
Sunroof inside air recirculation
The outside (fresh) air position is automatically selected, when the sunroof is opened.
When you select the recirculated air position, the system maintains the recirculated air position for 3 minutes and then automatically converts to the outside (fresh) air position.
When the sunroof is closed, the air intake position will return to the original position that was selected.

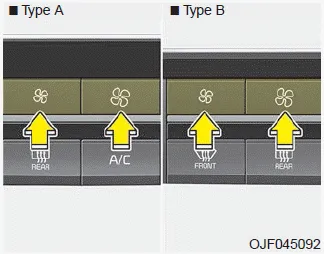

Fan speed control
The fan speed can be set to the desired speed by operating the fan speed control buttons.
To change the fan speed, press (
)
the button for higher speed, or push (
)
the button for lower speed. To turn the fan speed control off, press the front blower
OFF button.
This is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button.
Press the A/C button to turn the air conditioning system on (indicator light will illuminate). Press the button again to turn the air conditioning system off.
Other information:
Kia Optima DL3 2019-2025 Service and Repair Manual: Ambient Temperature Sensor
Description and operation Description The ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.
Kia Optima DL3 2019-2025 Service and Repair Manual: Climate Control Air Filter
Description and operation Description The climate control air filter is located in the blower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.
