Kia Optima DL3: Panoramic sunroof / Sunshade
To open the sunshade

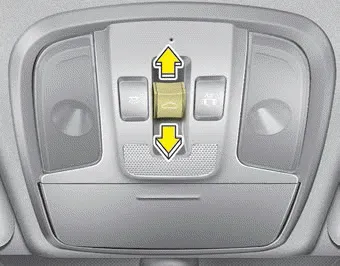

Push the sunroof control lever backward to the 1st detent position.
To close the sunshade when the sunroof glass is closed
Push the sunroof control lever forward to the 1st detent position.
To stop the sliding at any point, press the sunshade control switch momentarily.
✽ NOTICE
Wrinkles formed on the sunshade as material characteristic are normal.
CAUTION - Automatic sunroof shade
- Do not pull or push the sunshade by hand as such action may damage the sunshade or cause it to malfunction.
- Close the sunroof when driving in dusty environments. Dust may cause a malfunction of the vehicle system.
✽ NOTICE
Only the front glass of the panorama sunroof opens and closes.
If the driver removes the ignition key (smart key: turns off the engine) when the sunroof is not fully closed, the warning chime will sound for a few seconds and the above message will appear on the LCD display or the warning indicator will illuminate.
When the sunshade is closed Push the sunroof control lever backward to the 2nd detent position, and both the sunshade and sunroof glass will slide all the way open.
