Kia Optima DL3: Power Train / Vapor Hose and Fuel Filler Cap
Repair procedures
| Inspection |
Vapor hose
| 1. |
Check all the clamps for tightness and the connections for leakage. |
| 2. |
Visually check the vapor lines and hoses for cracks, leaks, loose connections, or deformation. |

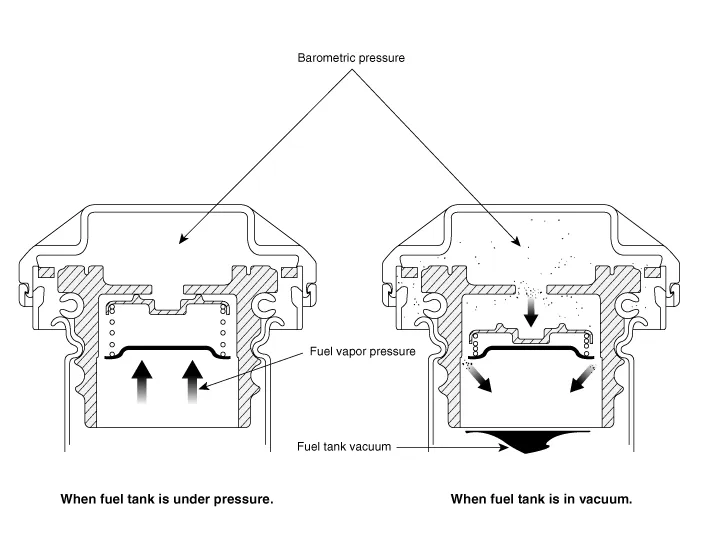

Fuel filler cap
| 1. |
Visually check that the fuel tank cap assembly and gasket (A) are not deformed or damaged.
|
