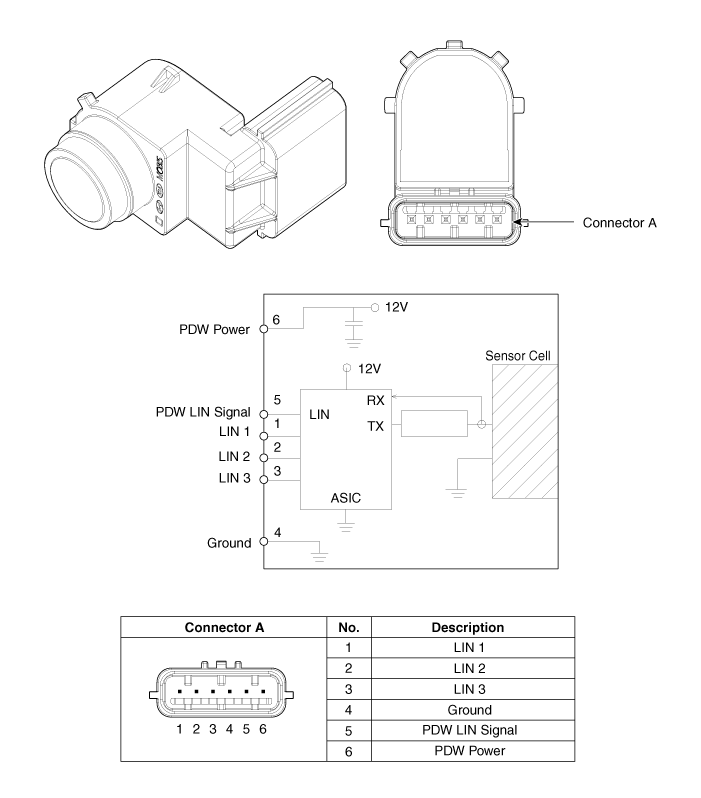

| Circuit Diagram |

| Removal |
Parking Distance Warning-Forward (PDW-F) Sensor
| 1. |
Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly") |
| 2. |

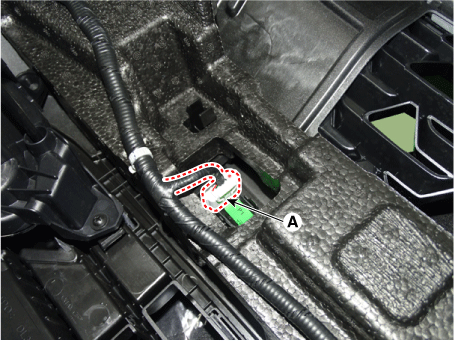

Disconnect the connector (A) from the PDW-F sensor.
|
| 3. |

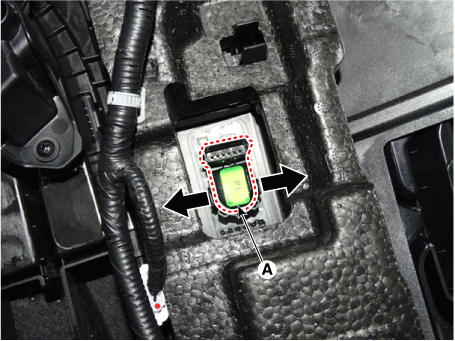

Remove the PDW-F sensor (A) by pushing the sensor holder in the direction of arrow.
|
Parking Distance Warning-Reverse (PDW-R) Sensor
| 1. |
Remove the rear bumper assembly. (Refer to Body - "Rear Bumper Assembly") |
| 2. |

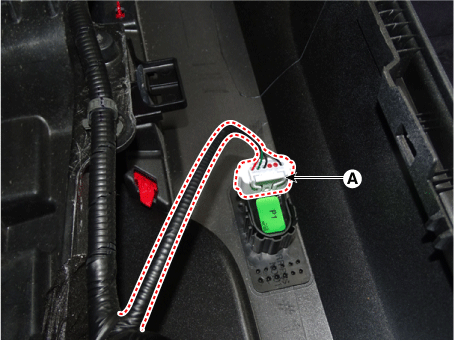

Disconnect the connector (A) from the PDW-R sensor.
|
| 3. |

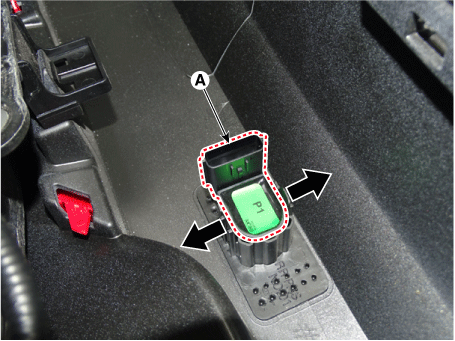

Remove the PDW-R sensor (A) by pushing the sensor holder in the direction of arrow.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Specifications Specifications Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range 30 - 120 cm (11.
Schematic diagrams Connector and Terminal Function Pin Function Pin Function 1 PAS mode switch 13 SVM mode indicator 2 PAS mode indicator 14 SVM mode switch 3 - 15 - 4 Detent 16 Ground 5 EPB switch1 17 EPB switch2 6 EPB switch3 18 EPB switch4 7 - 19 - 8 - 20 IGN1 9 Battery (+) 21 illumination (+) 10 - 22 - 11 ISG mode indicator 23 illumination (-) 12 ISG mode switch 24 Auto hold mode Repair procedures Inspection 1.
Components and components location Component Location 1. Walk-in switch Repair procedures Removal When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply prote
Repair procedures Inspection 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS). The diagnostic system (KDS) provides the following information. (1) Self diagnosis : Checking failure and code number (DTC).
