Kia Optima: Body (Interior and Exterior) / Rear Bumper

Kia Optima DL3 2019-2021 Service and Repair Manual / Body (Interior and Exterior) / Rear Bumper

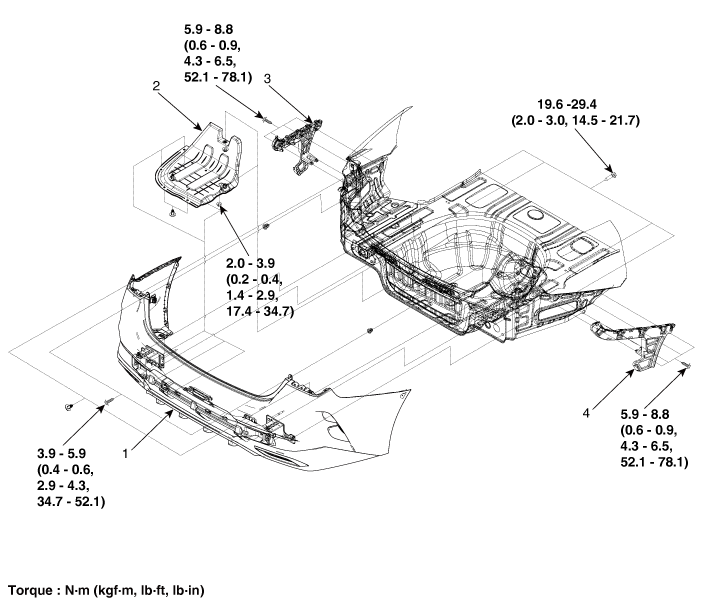

Components and components location
Components

1. Rear bumper assembly
2. Rear bumper side under cover
3. Rear bumper side bracket [LH]
4. Rear bumper side bracket [RH]
