Kia Optima DL3 2019-2025 Service and Repair Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch

Repair procedures

Removal

1.	Remove the front seat shield outer cover. (Refer to Body - "Front Seat Shield Outer Cover")

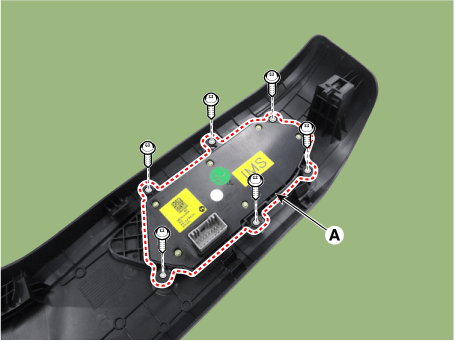

2.	Remove the power seat control switch (A) by loosening the mounting screws.

Installation

1.	Install in the reverse order of removal.
