Kia Optima: Rear Door / Rear Door Curtain Assembly

Kia Optima DL3 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Curtain Assembly

Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2.

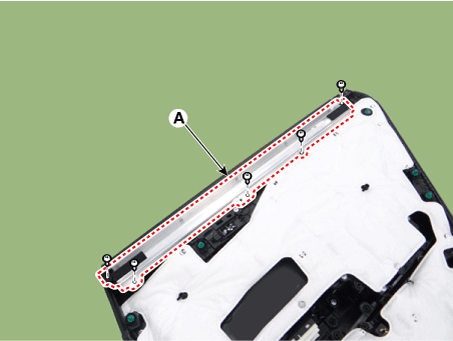

After loosening the mounting screws, remove the rear door curtain assembly (A).

3.

Install in the reverse order of removal.



Replace any damaged clips.

Make sure the door locks / unlocks and opens / closes properly.
