Kia Optima: Body (Interior and Exterior) / Rear Door

Kia Optima DL3 2019-2020 Service and Repair Manual / Body (Interior and Exterior) / Rear Door

Components and components location

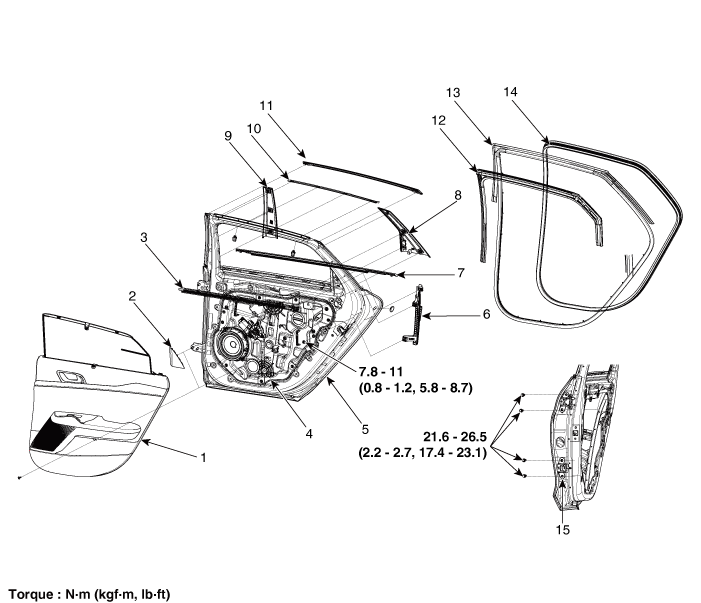

Components

1. Rear door trim
2. Rear door delta inner cover
3. Rear door belt inside weatherstrip
4. Rear door module
5. Rear door panel
6. Rear door lower channel
7. Rear door belt outside weatherstrip
8. Rear door frame garnish [Rear]
9. Rear door frame garnish [Front]
10. Rear door weatherstrip molding
11. Rear door frame molding
12. Rear door window glass run
13. Rear door side weatherstrip
14. Rear door body side weatherstrip
15. Rear door hinge

Repair procedures
Adjustment

Glass Adjustment



Check the glass run channel for damage or deterioration, and replace them if necessary.

1.

Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2.

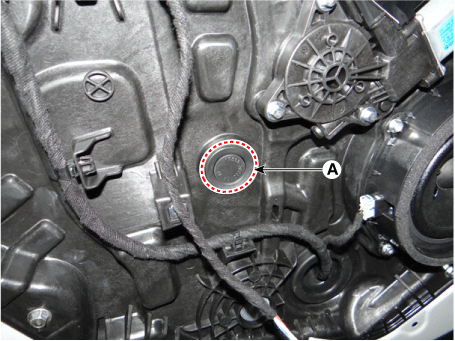

Separate the mounting plug hole (A) from the rear door module.

3.

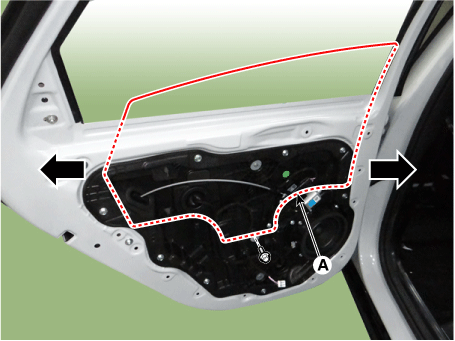

After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolt.

4.

Check the glass for normal operation.

Door Striker Adjustment



Make sure the door latches securely without slamming it. If necessary adjust the striker (A): The striker nuts are fixed. The striker can be fine adjusted up or down, and in or out.

1.

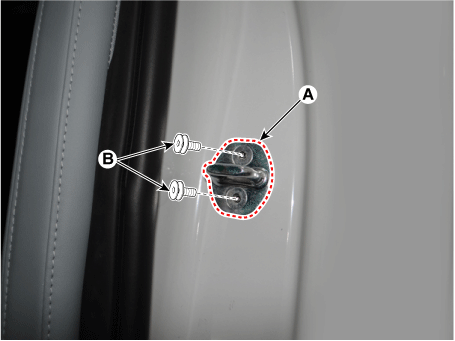

After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).

Tightening torque :

(B) : 18.6 - 33.3 N.m (1.9 - 3.4 kgf.m, 13.7 - 24.6 lb-ft)

2.

Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.

3.

Hold the outer handle out, and push the door against the body to make sure that the striker fits flush with the body. If the door latches properly, tighten the screws and recheck.

Door Position Adjustment



fter installing the rear door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.

1.

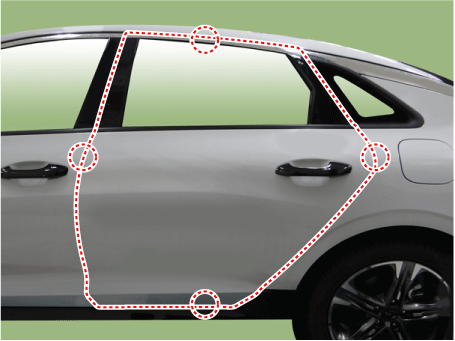

Check that the door and body edges are parallel.

2.

Place the vehicle on a firm, level surface when adjusting the doors.

3.

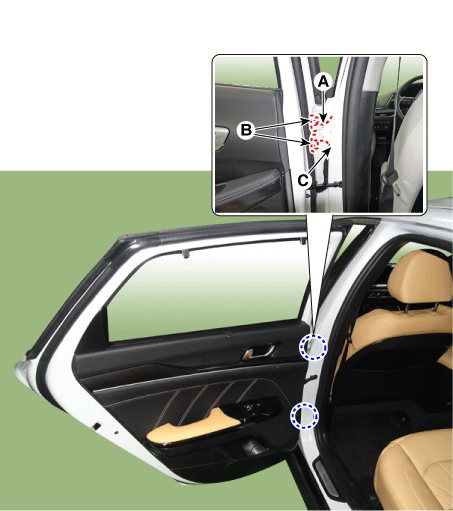

Adjust the hinges (A) :

Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.

Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to make the gaps equal.

Place a shop towel on the jack to prevent damage to the door when adjusting the door.

Tightening torque :

(B) : 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

(C) : 23.5 - 31.4 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.1 lb-ft)

4.

Grease the pivot portions of the hinges indicated by the arrows.

5.

Check for water leaks.
