Kia Optima DL3: Rear Door / Rear Door Inside Handle
Repair procedures
| Replacement |
| 1. |
Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") |
| 2. |

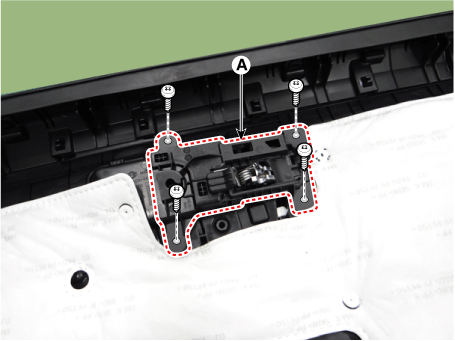

Loosen the mounting screws and remove the rear door inside handle (A).
|
| 3. |
Install in the reverse order of removal.
|
