Kia Optima: Panorama Sunroof / Roll Blind Cable Assembly

Kia Optima DL3 2019-2020 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Roll Blind Cable Assembly

Repair procedures
Replacement
1.

Remove the roof trim.

2.

Remove the roller blind.

(Refer to Panorama sunroof - "Roller Blind")

3.

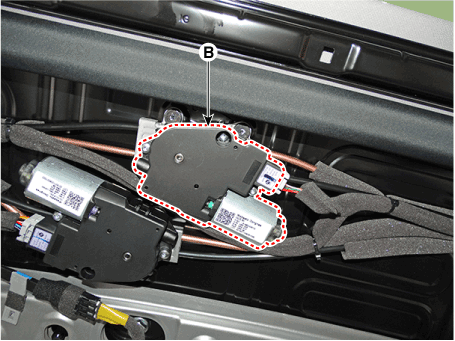

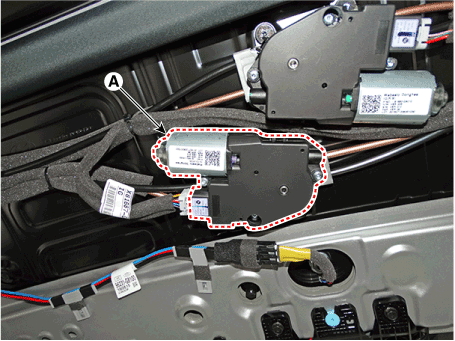

Loosen the mounting screws and remove the movable glass motor (A) roller blind motor (B).

4.

Loosen the mounting screws and separate the mechanism rail assembly.

5.

Remove the roller blind cable assembly (A) from mechanism rail assembly.

6.

To install, reverse the removal procedure.



Avoid excessive force as the shoe may not be inserted well.
