Kia Optima: Light bulbs / Stop and tail lamp (LED type) bulb replacement

Kia Optima DL3 2019-2023 Owner's Manual / Maintenance / Light bulbs / Stop and tail lamp (LED type) bulb replacement

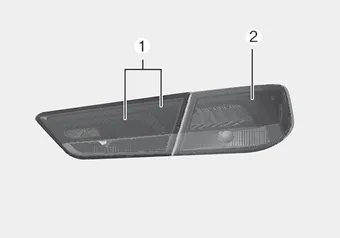

If the stop and tail lamp (LED) does not operate, have the vehicle checked by an authorized Kia dealer.

The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.

A skilled technician should check or repair stop and tail lamp (LED), for it may damage related parts of the vehicle.
