Components and components location

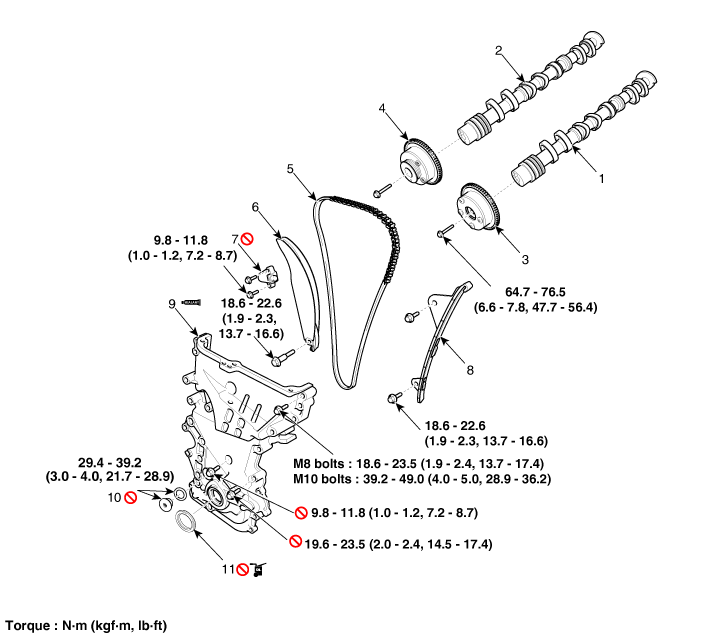

Components

1. Intake camshaft
2. Exhaust camshaft
3. Intake CVVT assembly
4. Exhaust CVVT assembly
5. Timing chain
6. Timing chain tensioner arm
7. Timing chain tensioner
8. Timing chain guide
9. Timing chain cover
10. Service plug bolt & gasket
11. Front oil seal

Oil Pump
Repair procedures Removal and Installation    Do not disassemble the oil pump (A) from timing chain cover because it ...

Front Oil Seal
Components and components location Components 1. Front oil seal Repair procedures Replacement 1. Remove the crankshaft damper pu ...
