Kia Optima: Lubrication System / Oil Pump

Kia Optima DL3 2019-2022 Service and Repair Manual / Engine Mechanical System / Lubrication System / Oil Pump

Repair procedures
Removal and Installation

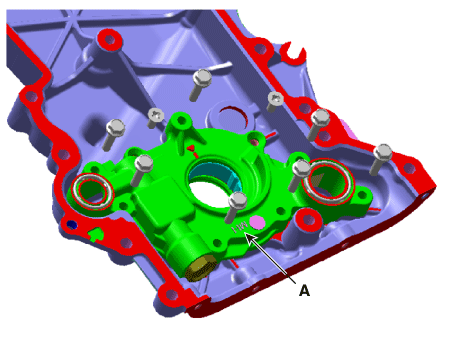

Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.

Oil Level Gauge & Pipe
Repair procedures Removal and Installation 1. Remove the oil level gauge (A). 2. Install in the reverse order of removal. ...

Timing System
Components and components location Components 1. Intake camshaft 2. Exhaust camshaft 3. Intake CVVT assembly 4. Exhaust CVVT assembly 5. Timing chain ...
