Kia Optima DL3: Interior lights / Trunk room lamp

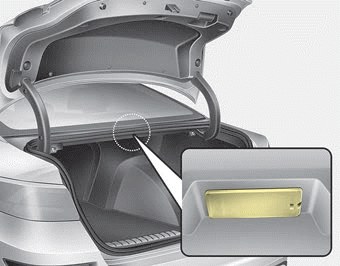

The trunk room lamp comes on when the trunk is opened.
✽ NOTICE
The trunk room lamp comes on as long as the trunk lid opens. To prevent unnecessary battery drain, close the trunk lid securely after using the trunk.
■ Type A ■ Type B • Press the lens (1) to turn ON the map lamp. To turn the map lamp OFF press the lens (1) again. • (2) : DOOR mode - The map lamp and room lamp come on when a door is opened.
Opening the lid of the vanity mirror will automatically turn on the mirror light. * The actual sunvisor lamp in the vehicle may differ from the illustration.
