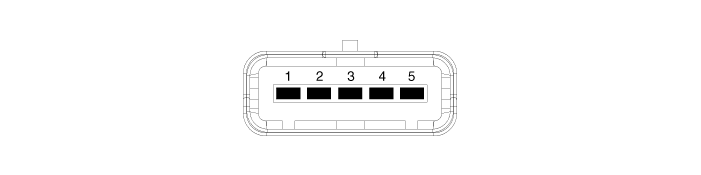

| Connector and Terminal Function |

|
Pin |
Function |
|
1 |
Ground (-) |
|
2 |
Parking |
|
3 |
Power (+) |
|
4 |
Low |
|
5 |
High |
| Removal |
| 1. |
Remove the cowl top cover. (Refer to Body - "Cowl Top Cover") |
| 2. |

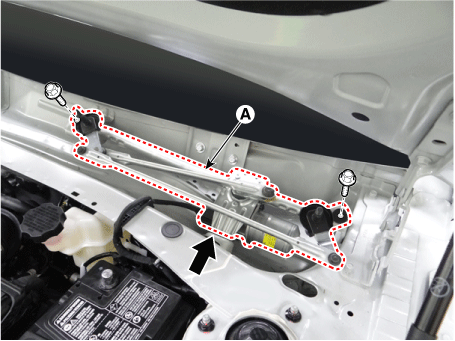

Remove the wiper motor & linkage assembly (A) after loosening the mounting bolts.
|
| 3. |
Disconnect the wiper motor connector (A).
|
| Installation |
| 1. |
Install in the reverse order of the removal. |
| Inspection |
| Diagnosis with KDS |
| 1. |
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS). The diagnostic system(KDS) provides the following information.
|
| 2. |
Select the 'Car model' and the 'Integrated body control unit (IBU)' to be checked in order to check the vehicle with the tester. |
| 3. |
Select the 'Current Data' menu to search the current state of the input/output data. |
