Kia Optima DL3: Air bag - advanced supplemental restraint system / Air bag warning light

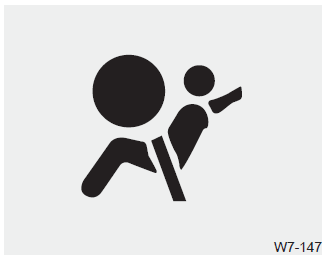

The purpose of air bag warning light in your instrument panel is to alert you of a potential problem with your air bag system, which could include your side and/or curtain air bags used for rollover protection.
The actual air bags in the vehicle may differ from the illustration. (1) Driver’s front air bag (2) Passenger’s front air bag (3) Side air bag (4) Curtain air bag (5) Driver’s knee air bag Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
The SRS consists of the following components: 1. Driver's front air bag module 2. Passenger's front air bag module 3. Side air bag modules 4. Curtain air bag modules 5.
