Repair procedures
Inspection
1.

Remove the front door trim.

(Refer to Body - "Frond Door Trim")

2.

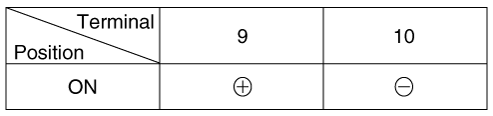

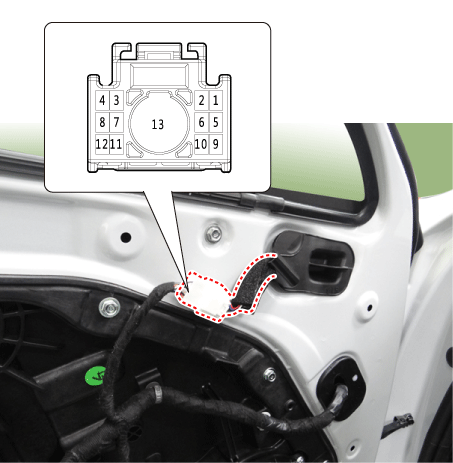

Check that the mirror operates properly as shown in the table below.

Removal
1.

Disconnect the negative battery terminal.

2.

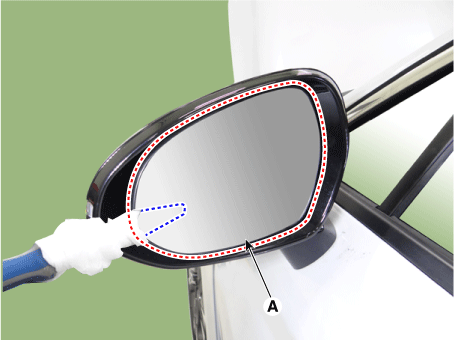

Remove the mirror (A).



Be careful not to damage mirror and mirror housing during removal process.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

3.

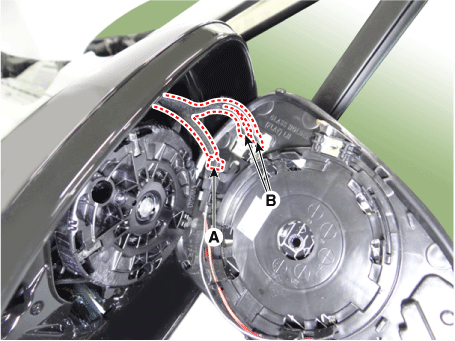

Disconnect the heater connectors (A) and BCW indicator connector (B).

Installation
1.

Install in the reverse order of removal.
