Kia Optima: Blower / Blower Motor

Kia Optima DL3 2019-2021 Service and Repair Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Motor

Repair procedures
Inspection
1.

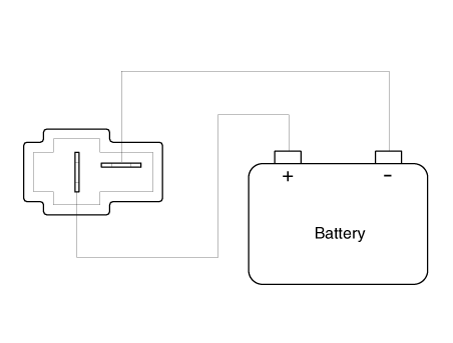

Connect the battery voltage and check the blower motor rotation.

2.

If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.

3.

Replace the blower motor if it is proved that there is a problem with it.

Replacement
1.

Disconnect the negative (-) battery terminal.

2.

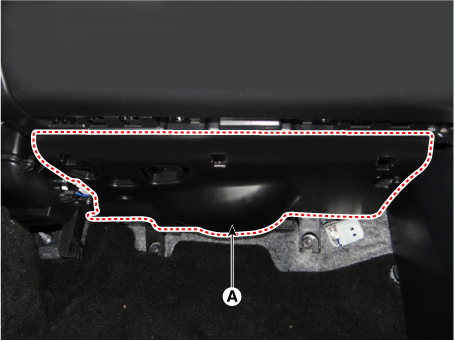

Remove the crash pad under cover (A).

3.

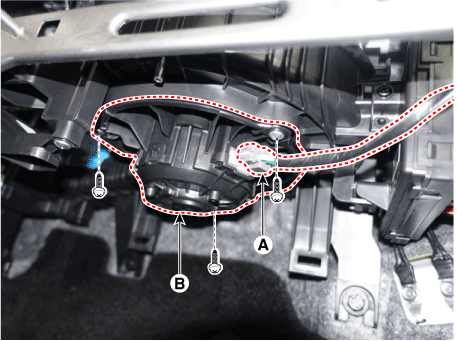

Separate the connector (A), loosen the mounting screws and remove the blower motor (B).

4.

To install, reverse the removal procedure.
