Kia Optima: Your vehicle at a glance / Engine compartment

Kia Optima DL3 2019-2022 Owner's Manual / Your vehicle at a glance / Engine compartment

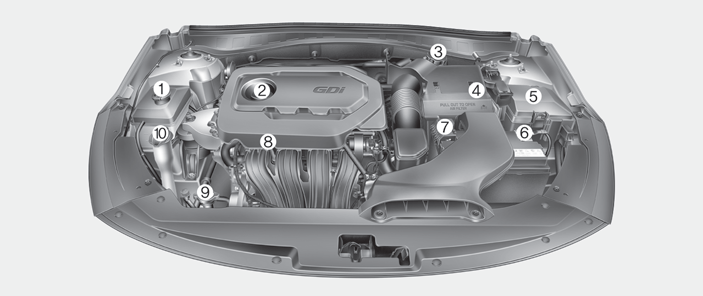

■ THETA 2.4L - GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir
