Kia Optima: Button Engine Start System / ESCL(Electronic Steering Column Lock)

Kia Optima DL3 2019-2023 Service and Repair Manual / Body Electrical System / Button Engine Start System / ESCL(Electronic Steering Column Lock)

Schematic diagrams

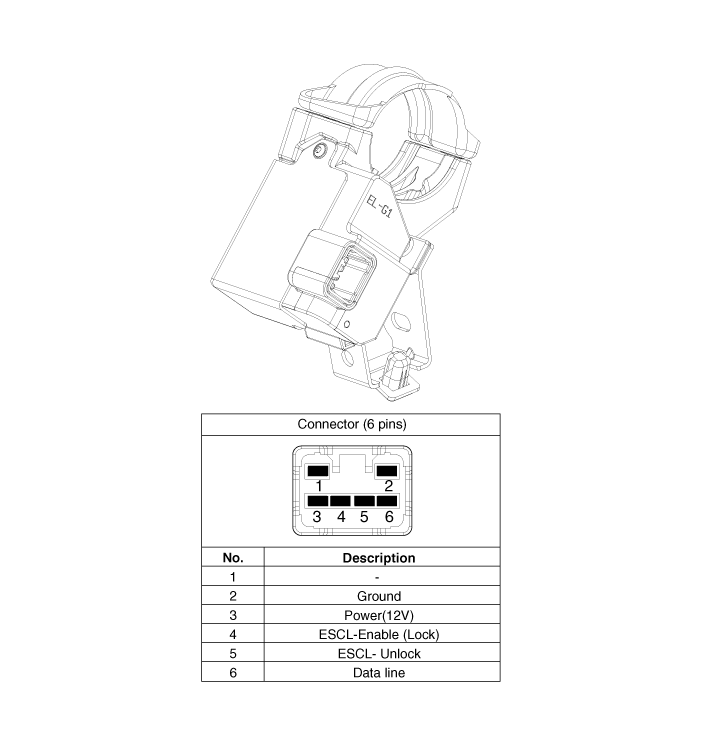

Connector and Terminal funciton

Repair procedures
Removal
1.

Disconnect the negative battery terminal.

2.

Remove the crash pad lower panel.

(Refer to Body - "Crash Pad Lower Panel")

3.

Remove the steering column upper and lower shrouds.

(Refer to Body - "Steering Column Shroud Panel")

4.

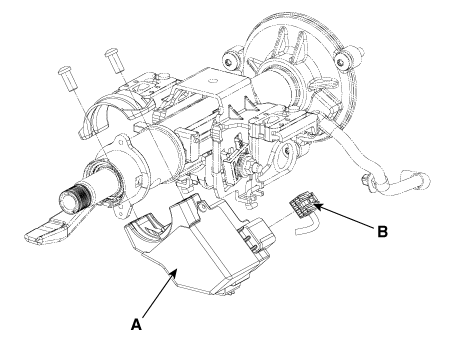

Remove the electronic steering column lock (A) by loosening the mounting bolts after disconnecting the connector (B).

Tightening torque : 6.9 - 12.8 N·m (0.7 - 1.3 kgf·m, 5.0 - 9.4 lb·ft)

Installation
1.

Install in the reverse order of removal.



The existing shear bolts must be replaced with a new one. (Do not reuse it.)

Tighten the shear bolts until its head is cut off.
