Description and operation

Description

The evaporator temperature sensor will detect the evaporator core temperature and interrupt compressor relay power in order to prevent evaporator from freezing by excessive cooling. The evaporator temperature sensor has the Negative Temperature Coefficient (NTC). Electrical resistivity of NTC will increase with decreasing temperature and decrease with increasing temperature.

Repair procedures

Inspection

1.	Turn the ignition switch OFF.

2.	Disconnect the evaporator temperature sensor connector.

Measure the resistance between terminal "+" and "-" of the evaporator temperature sensor.

Specification

Evaporator core temperature [°C (°F)]	Resistance [KΩ]	Voltage [V]
-10 (14)	43.35	2.96
0 (32)	27.62	2.40
10 (50)	18.07	1.88
20 (68)	12.11	1.44
30 (86)	8.30	1.08
40 (104)	5.81	0.81

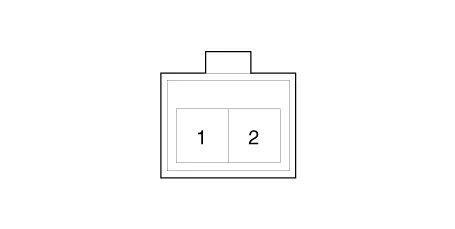

1. Sensor Ground

2. Evaporator sensor (+)

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the evaporator core assembly. (Refer to Heater - "Evaporator Core")

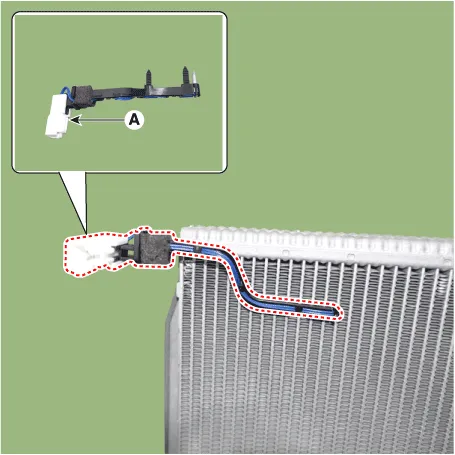

3.	Remove the evaporator temperature sensor (A) from the evaporator core.

4.	To install, reverse the removal procedure.
