Kia Optima DL3: Front Seat Belt / Height Adjust
Repair procedures
| Replacement |
| 1. |
Remove the front seat belt retractor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") |
| 2. |

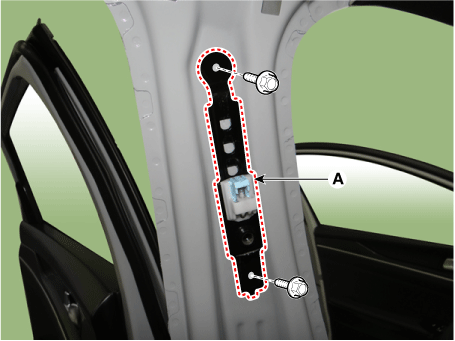

Loosen the mounting bolts, remove the height adjust (A).
|
| 3. |
To install, reverse the removal procedure. |
