Kia Optima DL3: Body (Interior and Exterior) / Front Seat Belt
Components and components location

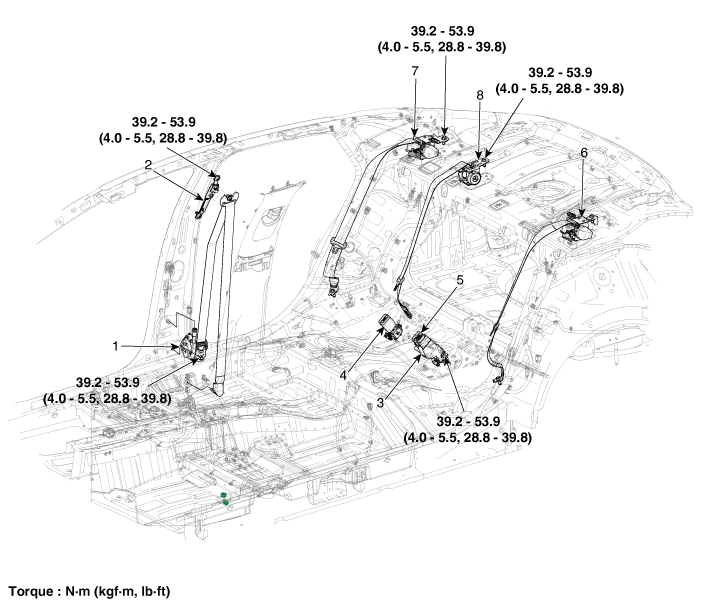

| Components |
| 1. Front seat belt retractor
2. Height adjust 3. Rear seat belt buckle [LH] 4. Rear seat belt buckle [RH] |
5. Rear center seat belt 6. Rear seat belt retractor [LH] 7. Rear seat belt retractor [RH] 8. Rear center seat belt buckle |
Components and components location Component Location 1. Rear seat cushion cover Repair procedures Replacement 1.
Components and components location Component Location 1. Front seat belt retractor Repair procedures Replacement Be careful not to damage the retractor when removing or installing the seat belt.
