Kia Optima DL3: Body Electrical System / Electro Chromic Inside Rear View Mirror

Kia Optima DL3 2019-2025 Service and Repair Manual / Body Electrical System / Electro Chromic Inside Rear View Mirror

Description and operation

Description

The ECM (Electro Chromatic inside rear view Mirror) is one that automatically dims to protect the driver’s eyes when it senses light reflecting from the car behind. The sensor in the mirror detects the brightness and if the headlight from the car behind is reflected on the mirror, the chemical layer inside the mirror reacts to glare and adjusts the reflectivity from 10 to 70%. When switching to the reverse gear, the mirror becomes bright regardless of the surrounding. The ECM receives voltage, ground and reverse gear signals, and uses two sensors to measure the glaring intensity.

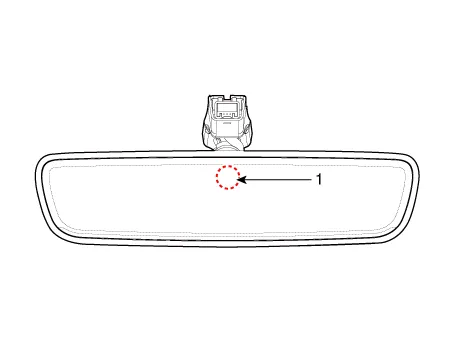

1. Rearward looking sensor

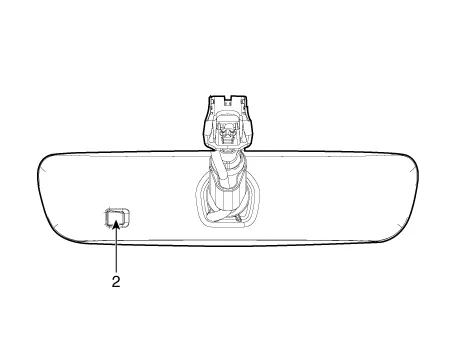

2. Forward looking sensor

Operation

•	The forward facing sensor determines whether the surrounding space is dark enough to activate the function.

•	The rearward facing sensor detects the glare on the mirror. If the glare is detected, the sensor transmits the signal for the mirror to dim

•	The ECM is darkened to the level as determined by the rearward looking sensor. When the glaring is no longer detected, the mirror stops functioning.

Schematic diagrams

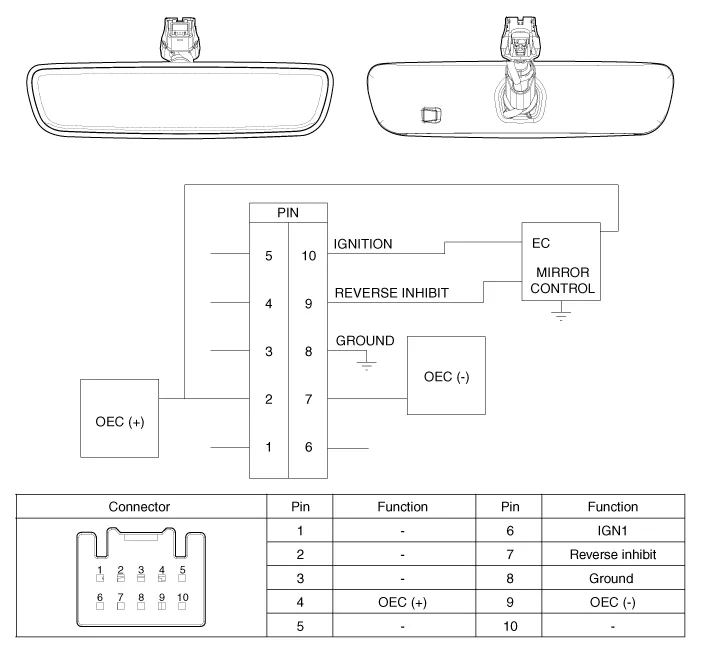

Circuit Diagram

Repair procedures

Removal

1.	Disconnect the negative battery terminal.

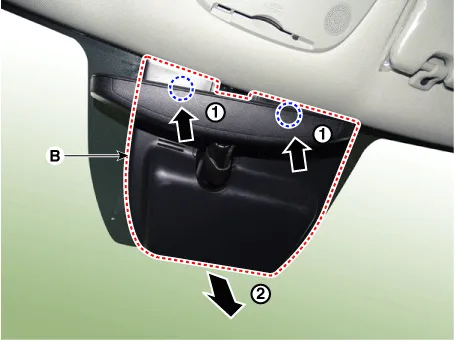

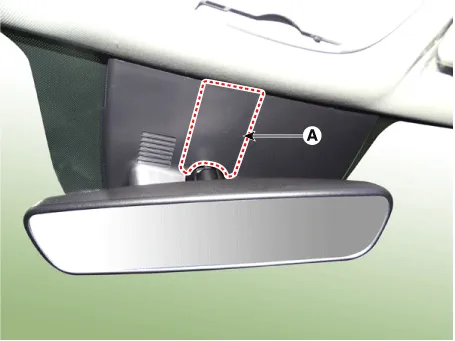

2.	Remove the multi sensor cover (A), (B).

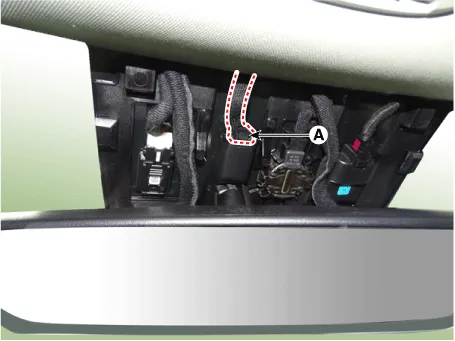

3.	Disconnect the inside rear view mirror connector (A).

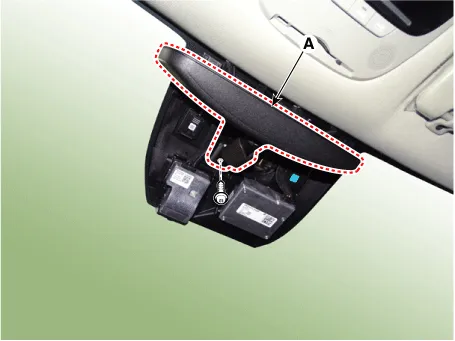

4.	Remove the inside rear view mirror (A) after loosening the screw.

Installation

1.	Install in the reverse order of removal.
