Kia Optima DL3: ESC (Electronic Stability Control) System / Emergency Signal System
Description and operation
| Description |
Introduction of quick brake warning system (ESS)

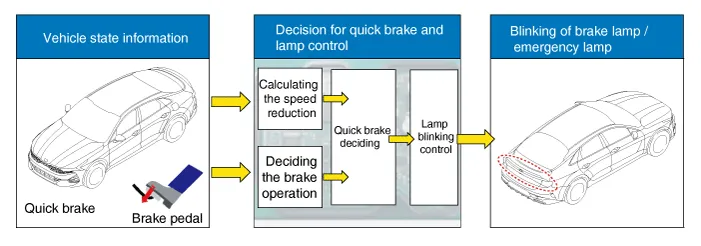

In case of quick brake by driver, the brake lamp or turn signal is blinked to warn against the vehicle at rear.
| 1. |

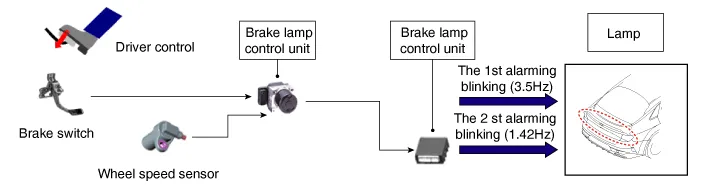

Basic function (Blinking the brake lamp/emergency lamp)
|
| 2. |
Additional function (Blinking the turn signal)
|

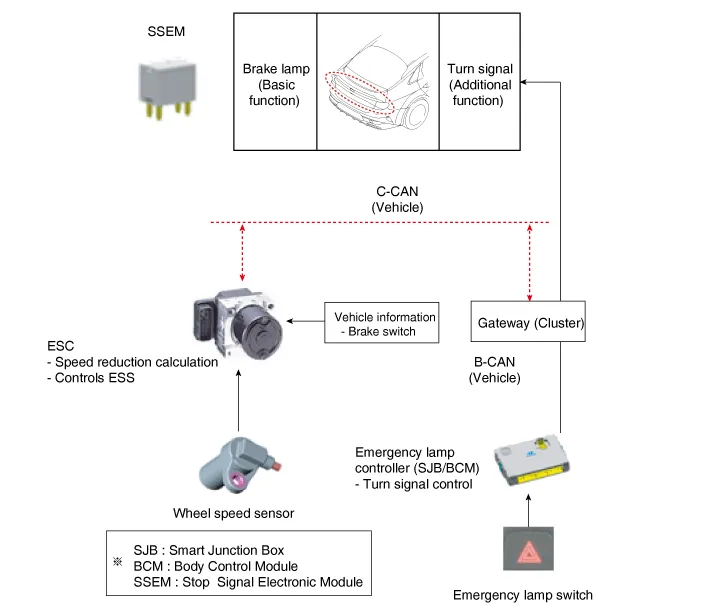

System configuration
ESS Circuit diagram
Components and components location Components 1. Rear wheel speed sensor 2. Rear wheel speed sensor connector Repair procedures Removal 1.
Service data Service Data Items Specification Hood Type Rear hinged, gas lifter type Front Door Construction Front hinged, frame door construction Regulator system Wire drum type Locking system Pin-fork system Rear Door Construction Front hinged, frame door construction Regulator system Wire drum type Locking system Pin-fork system Trunk Lid Type Front hinged Seat Belts Front 3 point type with Emergency Locking Retractor (E.
