Kia Optima DL3: Fuse/relay panel description / Engine compartment fuse panel
■ THETA 2.4L GDI

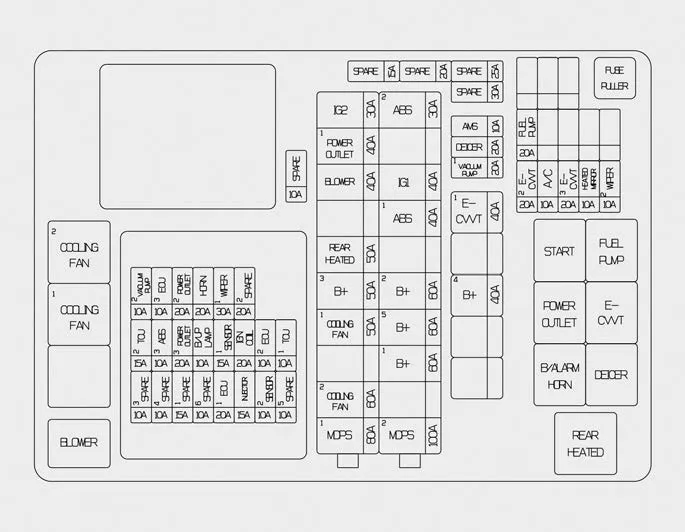

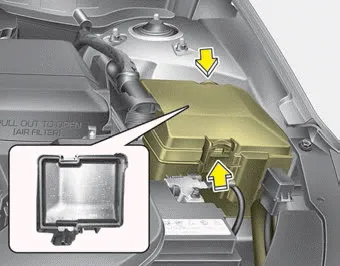

Engine room compartment fuse panel

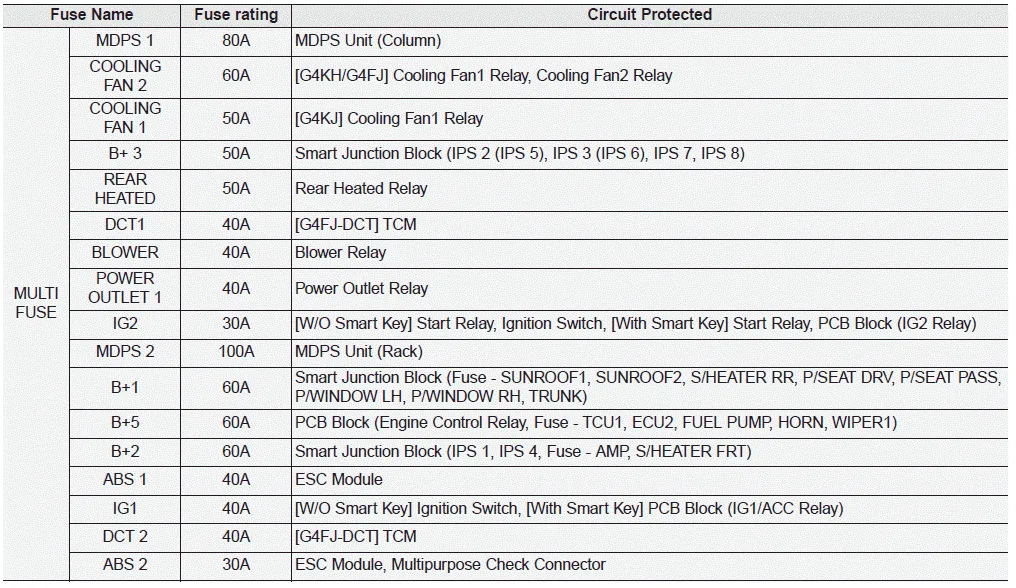

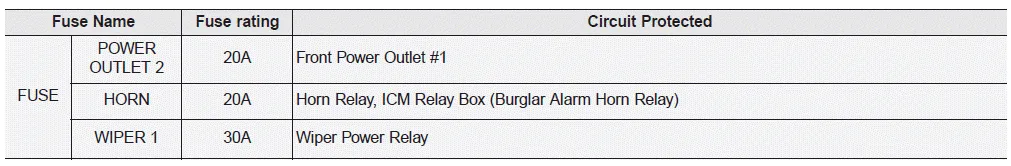

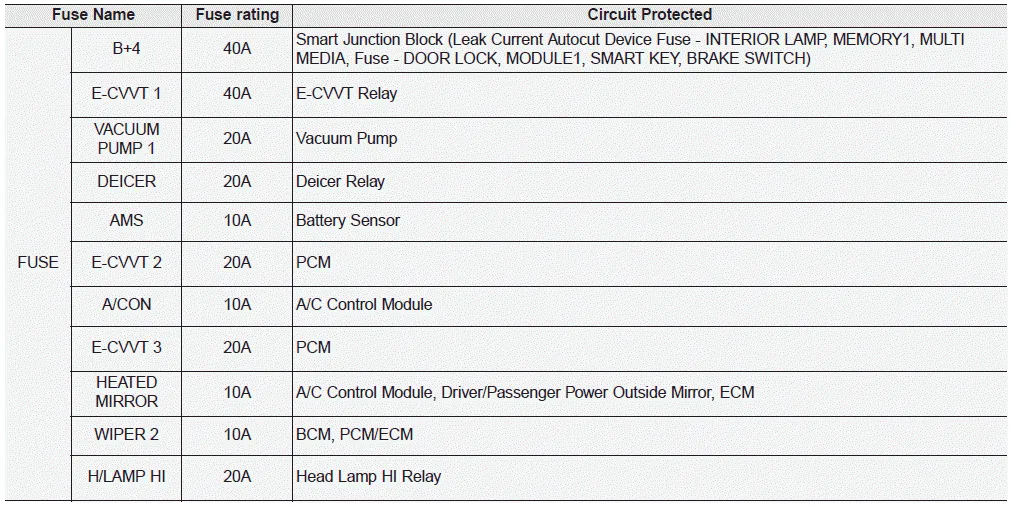

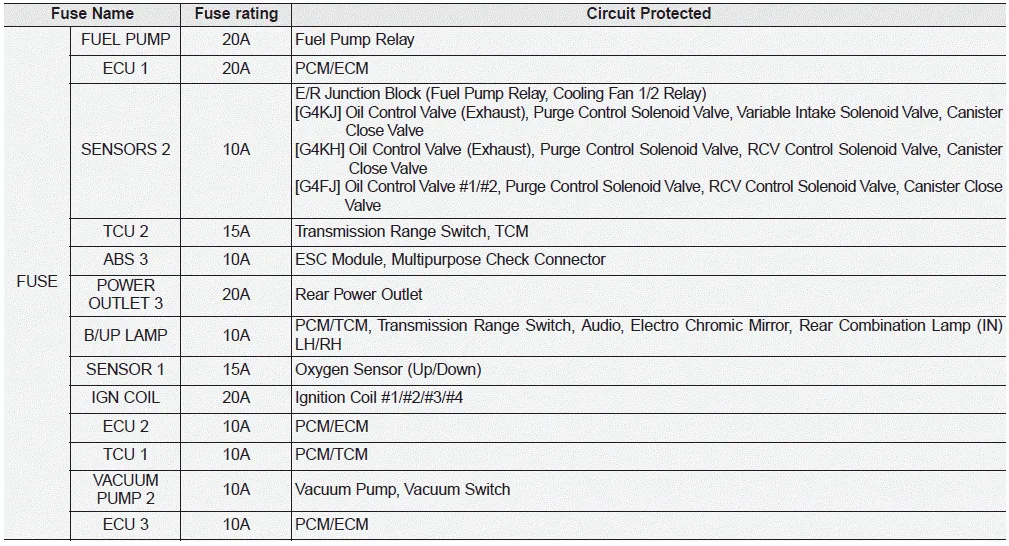

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. ✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to your vehicle.
✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
