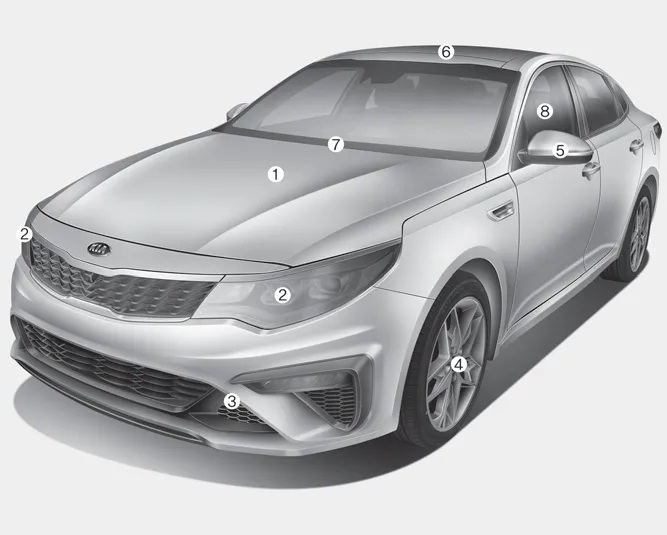

■ Front view
1. Hood (Features of your vehicle)
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Fog lamp (Features of your vehicle)
Fog lamp (Maintenance)
4. Wheel and tire (Maintenance)
Wheel and tire (Specifications)
5. Outside rearview mirror
6. Panoramic sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance/Service Mode Replacement)
8. Windows

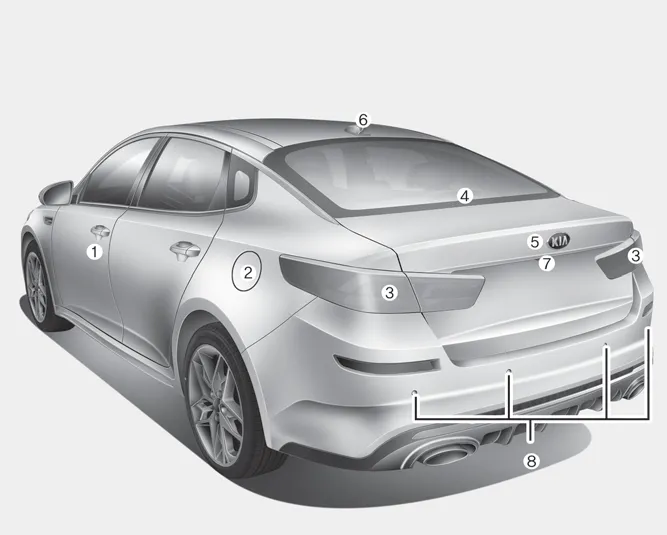

■ Rear view
1. Door locks
2. Fuel filler lid
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Trunk
6. Antenna
7. Rear view monitor
8. Parking Distance Warning - Reverse
