Components and components location

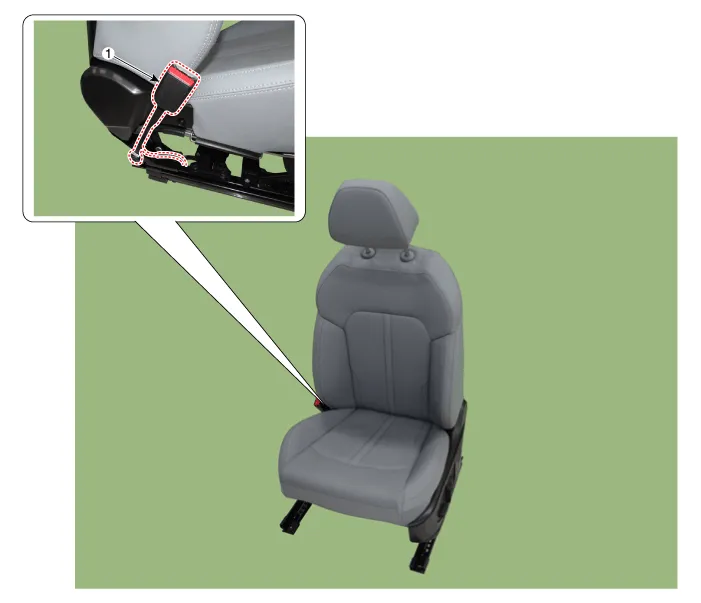

Component Location

1. Front seat belt buckle

Repair procedures

Replacement

•	When installing the belt, make sure not to damage the retractor.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

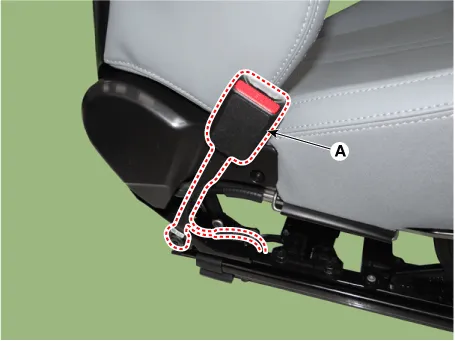

2.	Separate the front seat belt buckle wiring (A).

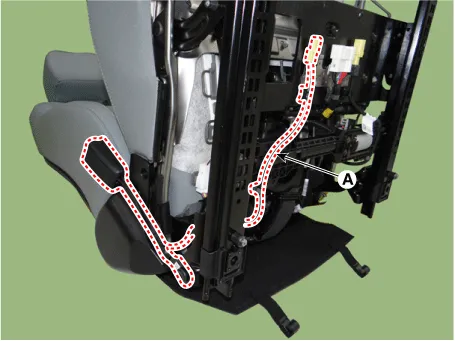

Loosen the mounting bolt and remove the front seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	Make sure that the connectors are connected completely

•	Replace any damaged clips (or pin-type retainers).
