Kia Optima DL3: Front Seat / Front Seat Frame Assembly

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly

Components and components location

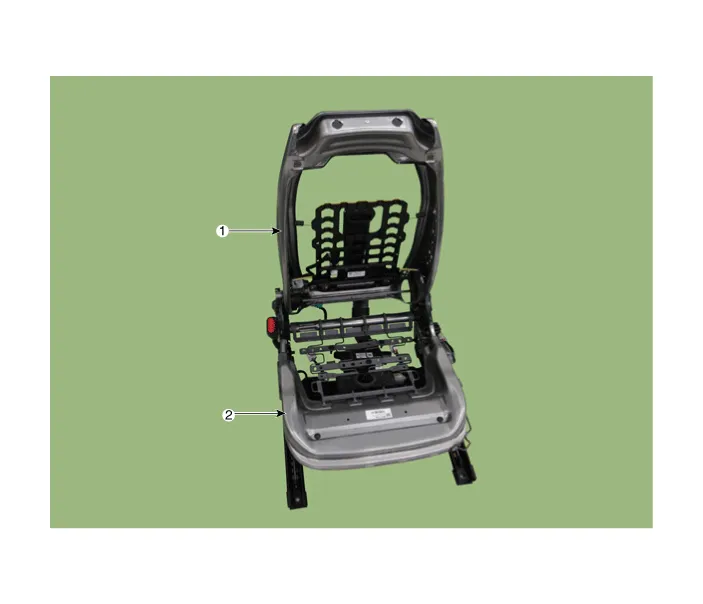

Component Location

1. Front seat back frame assembly

2. Front seat cushion frame assembly

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Take care not to bend or scratch the trim and panels.

•	Put on gloves to prevent hand injuries.

1.	Remove the front seat back cover. (Refer to Front Seat - "Front Seat Back Cover")

2.	Remove the front seat cushion cover. (Refer to Front Seat - "Front Seat Cushion Cover")

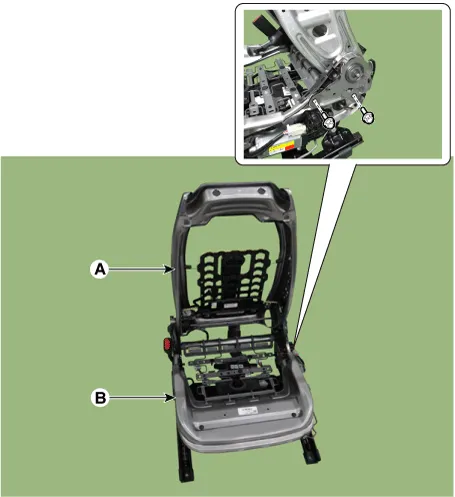

Loosen the mounting bolts and remove the front seat back frame (A) and front seat cushion frame (B).

Tightening torque :

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	For the seat equipped with side airbag, remove the side airbag from the seat frame assembly. (Refer to Restraint - "Side Airbag (SAB) Module")

•	Before service, be fully aware of precautions and service procedure relevant to air bag. (Refer to Restraint - "Side Airbag (SAB) Module")
