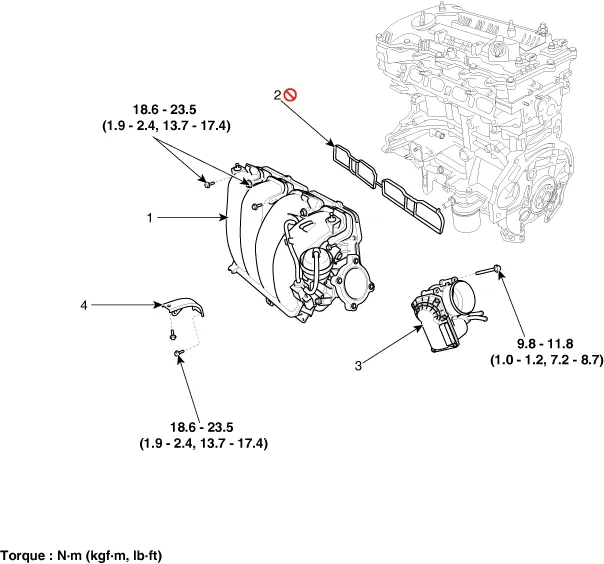

| Components |

| 1. Intake manifold assembly
2. Intake manifold gasket |
3. Electronic throttle body
4. Intake manifold stay |
| Removal and Installation |
| 1. |
Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Cover") |
| 2. |
Disconnect the battery negative terminal. |
| 3. |
Remove the air cleaner assembly. (Refer to Intake and Exhaust System - "Air Cleaner") |
| 4. |
Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
| 5. |

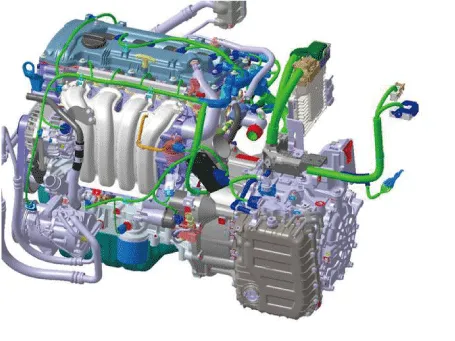

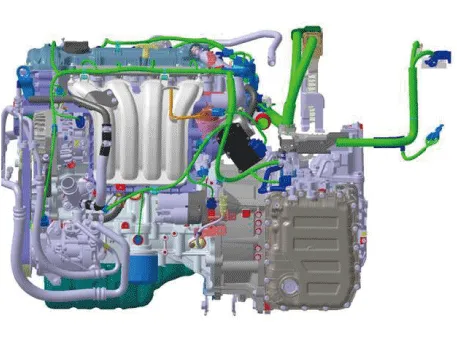

Disconnect the wiring connectors and harness clamps and remove the wiring protector around the intake manifold.
|
| 6. |

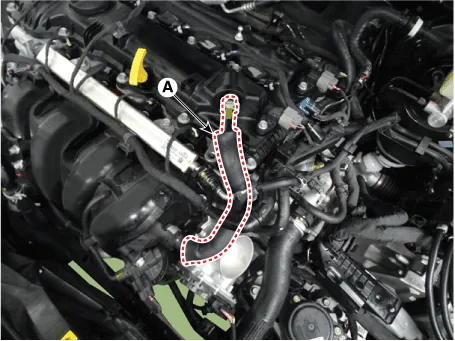

Disconnect the positive crankcase ventilation (PCV) hose (A).
|
| 7. |

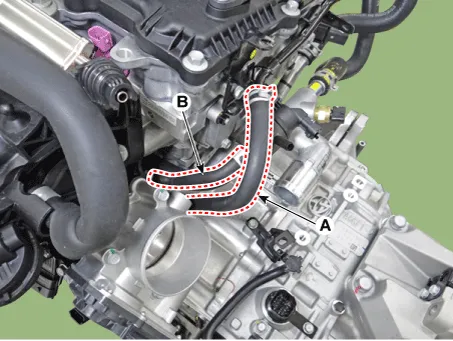

Disconnect the vacuum hose (A) and purge control solenoid valve (PCSV) hose (B).
|
| 8. |
Unfasten the electric throttle body control (ETC) module bolts. (Refer to Engine Control/Fuel System - "ETC (Electric throttle body control) System") |
| 9. |

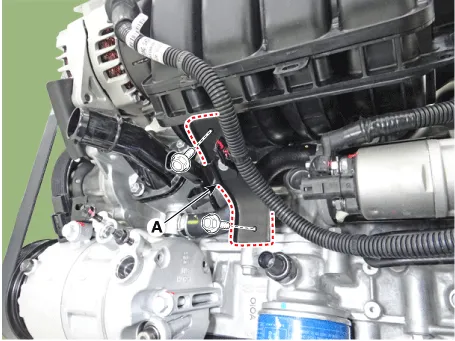

Remove the intake manifold stay (A).
|
| 10. |

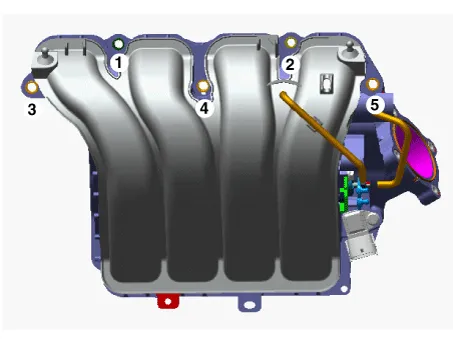

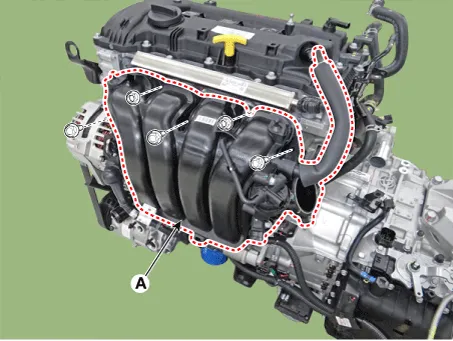

Remove the intake manifold (A) with the gasket.
|
| 11. |
Install in the reverse order of removal. |
