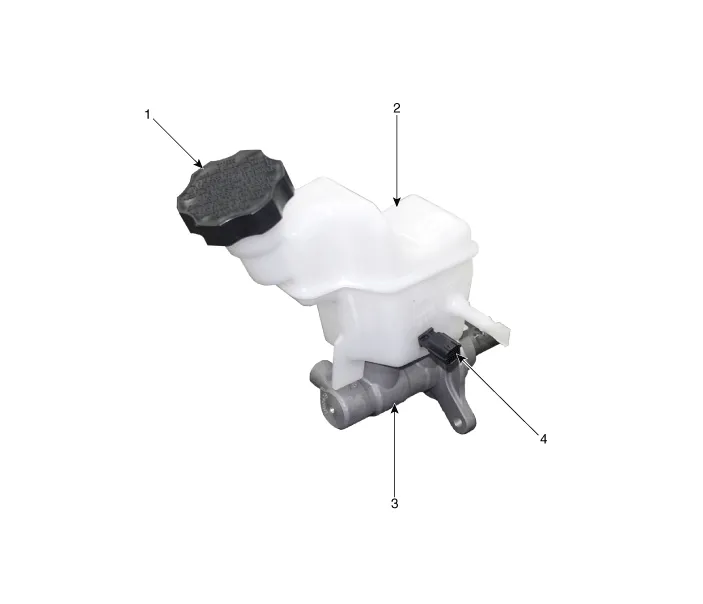

| Components |

| 1. Reservoir cap 2. Reservoir |
3. Master cylinder 4. Brake fluid level sensor |
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. |
Remove the air cleaner assembly. G 2.0 NU MPI (Refer to Engine Mechanical System - "Air Cleaner") G 2.5 GDI THETA II (Refer to Engine Mechanical System - "Air Cleaner") |
| 3. |

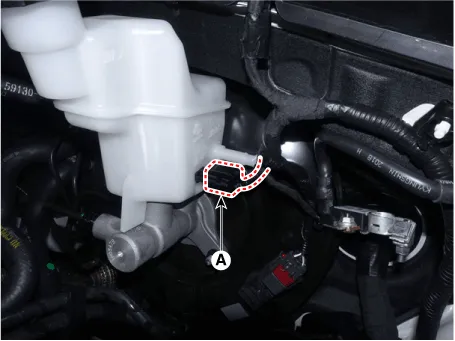

Disconnect the brake fluid level sensor connector (A).
|
| 4. |
Remove the brake fluid from the master cylinder reservoir with a syringe.
|
| 5. |

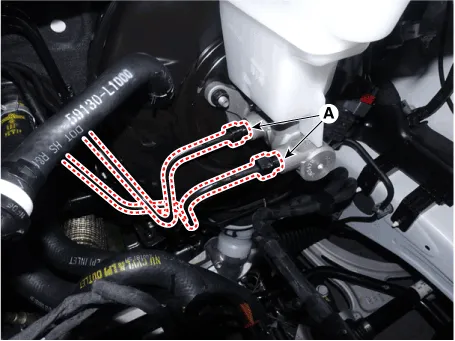

Separate the brake tube (A) from the master cylinder by loosening the tube flare nut.
|
| 6. |

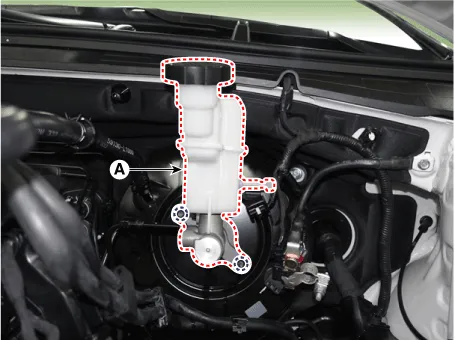

Remove the master cylinder (A) after loosening the master cylinder nuts.
|
| 7. |

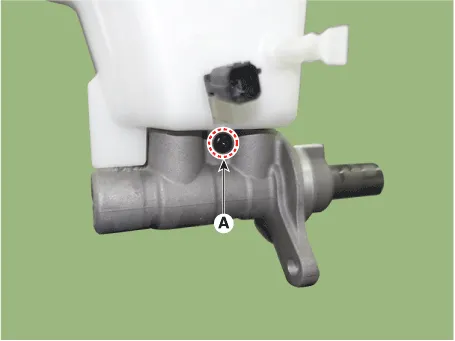

Separate the reservoir from the master cylinder after remove the screw (A).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| 2. |
After installation, bleed the brake system. (Refer to Brake System - "Brake Bleeding Prcoedures") |
| 3. |
Check the brake oil leakage and pedal operating condition. |
