Specifications

Specification

Item				Tyep	Watt (W)
Front	Headlamp	A Type	High beam	LED	-
			Low beam	LED	-
			Position/DRL	LED	-
		B Type	High beam	LED	-
			Low beam	LED	-
			Low assist	LED	-
			Position/DRL	LED	-
			Turn signal lamp	LED	-
	Fog lamp			LED	-
	Turn signal lamp (Front air duct)			PY21W	21
	Turn signal lamp (Outside mirror side)			LED	-
Rear	Rear combination lamp	A Type	Tail/Stop lamp	21/5W	21/5
			Tail lamp	W5W	5
			Turn signal lamp	PY21W	21
			Back up lamp	W16W	16
		B Type	Tail/Stop lamp	LED	-
			Tail lamp	LED	-
			Turn signal lamp	PY21W	21
			Back up lamp	W16W	16
	High mounted stop lamp			LED	-
	License plate lamp			W5W	5
Interior	Overhead console lamp			LED	-
	Room lamp			LED	-
	Personal lamp			LED	-
	Vanity lamp			W5W	5
	Trunk room lamp			FESTOON	5

Components and components location

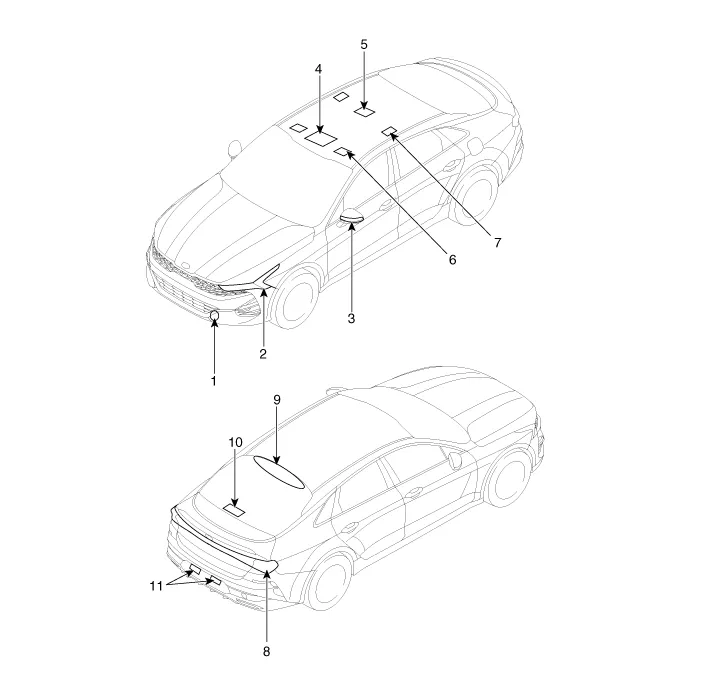

Component Location

1. Front fog lamp
2. Headlamp
3. Side repeater lamp (Outside mirror side)
4. Overhead console lamp
5. Room lamp (Non-Panorama sunroof type)
6. Vanity lamp

7. Personal lamp (Panorama sunroof type)
8. Rear combination lamp
9. High mounted stop lamp
10. Trunk room lamp
11. License plate lamp
