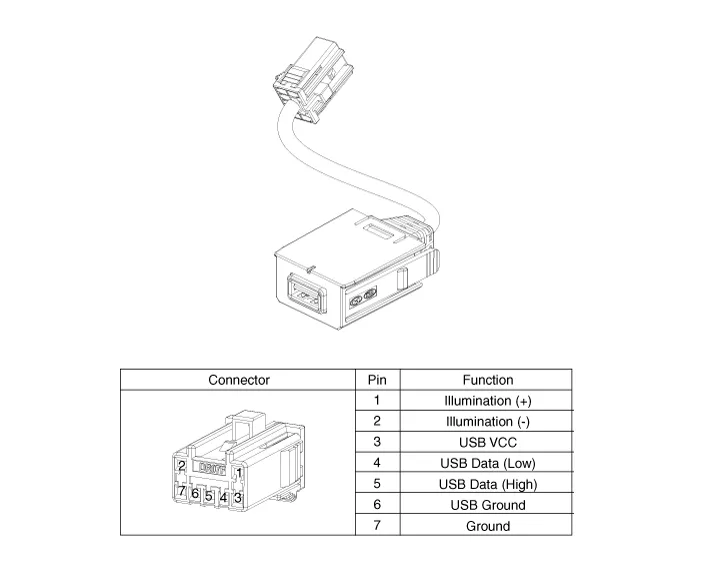

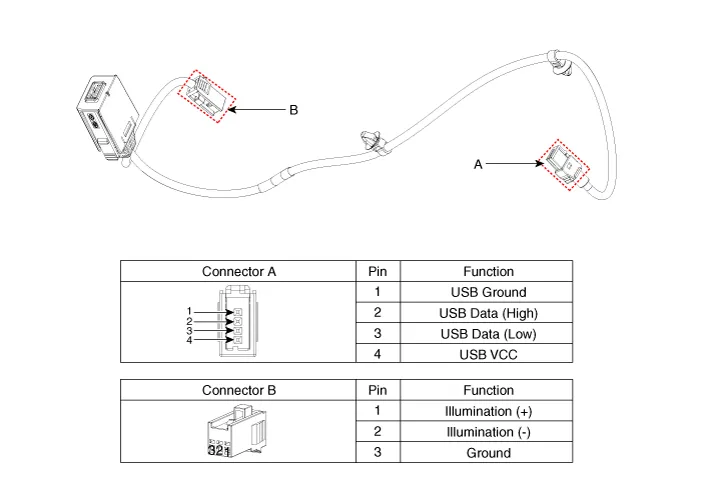

| Circuit Diagram |
| Audio |

| Display Audio / AVN |

| Removal |
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") |
| 3. |

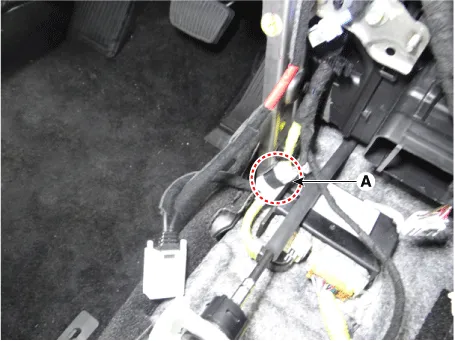

Disconnect the multimedia jack connector (A).
|
| 4. |

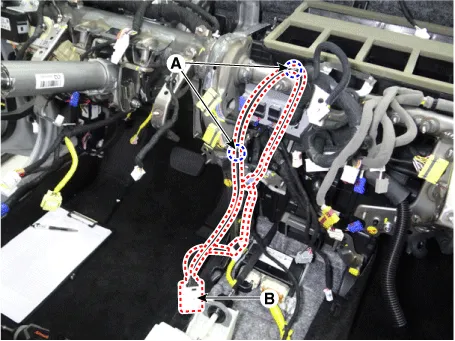

Remove the multimedia wiring jack (B) after removing the fixing fasteners (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
