Description and operation

Description

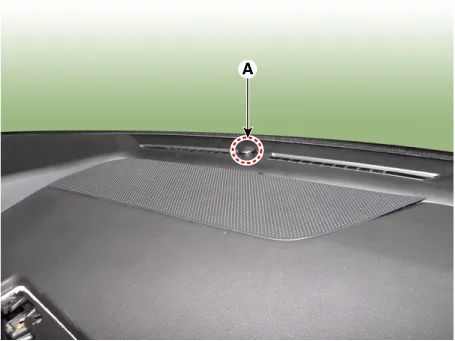

The photo sensor is located at the center of the defrost nozzles.

The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic temperature control module so that the solar radiation compensation will be performed.

Repair procedures

Inspection

1.	Turn the ignition switch ON.

2.	Connect the KDS.

3.	Emit intensive light toward the photo sensor using a lamp, and check the output voltage change.

The voltage will rise with higher intensive light and reduce with lower intensive light.

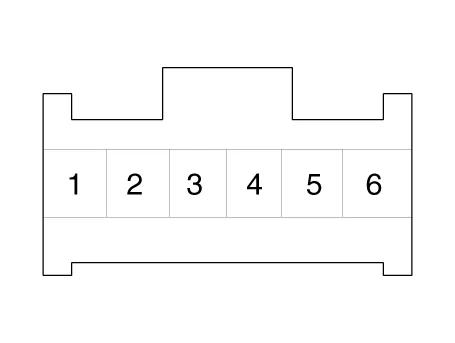

1. Auto light ground
2. Auto light power (5V)
3. Auto light signal

4. Photo signal (RH)
5. Photo power
6. Photo signal (LH)

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

•	Put on gloves to prevent hand injuries.

1.	Disconnect the negative (-) battery terminal.

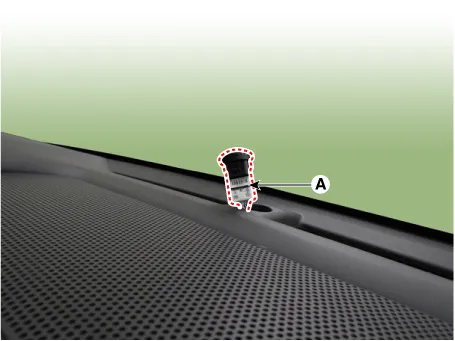

2.	Using a remover and remove the photo sensor (A).

3.	Press the lock pin and separate the photo sensor connector (A).

To install, reverse the removal procedure.

•	Make sure connectors are connected properly.
