Kia Optima DL3: Body (Interior and Exterior) / Rear Bumper

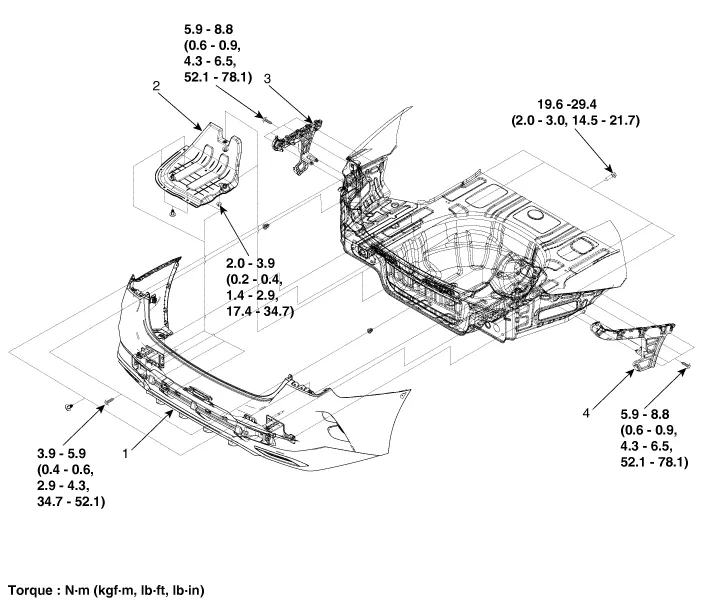

Components and components location
| Components |
| 1. Rear bumper assembly 2. Rear bumper side under cover |
3. Rear bumper side bracket [LH]
4. Rear bumper side bracket [RH] |
Components and components location Component Location 1. Front bumper beam assembly Repair procedures Replacement Put on gloves to prevent hand injuries.
Components and components location Component Location 1. Rear bumper assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
