Kia Optima DL3: Cylinder Block / Rear Oil Seal

Kia Optima DL3 2019-2026 Service and Repair Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal

Components and components location

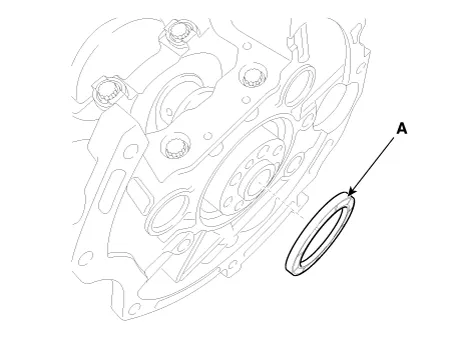

Components

1. Rear Oil Seal

Repair procedures

Replacement
1.

Remove the automatic transaxle.

(Refer to Automatic Transaxle System - "Automatic Transaxle")

2.

Remove the drive plate.

(Refer to Cylinder Block – “Drive Plate”)

3.

Remove the rear oil seal (A).
4.

Install a new rear oil seal.

(1)

Apply engine oil on the edge of new oil seal.
(2)

Using SST (09231-H1100, 09214-2E000) and a hammer, tap in the oil seal (A) until the SST face is aligned with the cylinder block assembly rear face.
5.

Install the other parts reverse order of removal.
