Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor

Components and components location

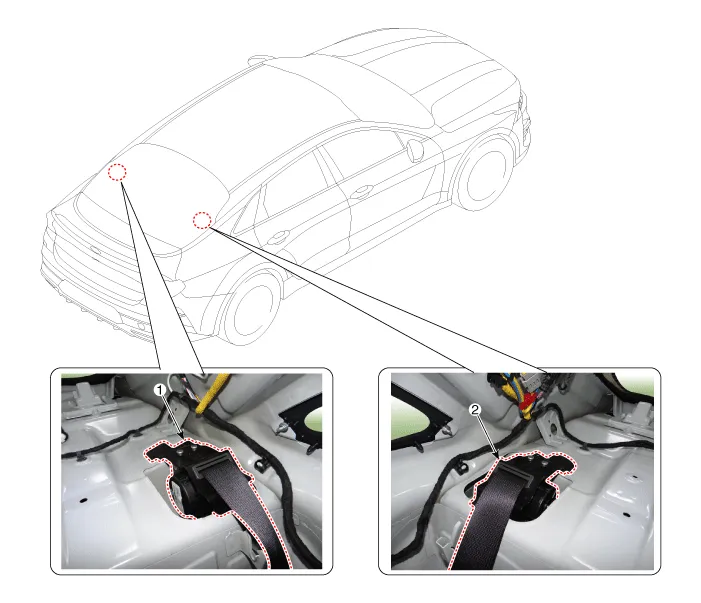

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Repair procedures

Replacement

•

When installing the belt, make sure not to damage the retractor.

•

Put on gloves to prevent hand injuries.
1.

Remove the rear seat assembly.

(Refer to Rear Seat - "Rear Seat Assembly")

2.

Remove the rear package tray trim.

(Refer to Trunk Trim - "Rear Package Tray Trim")

3.

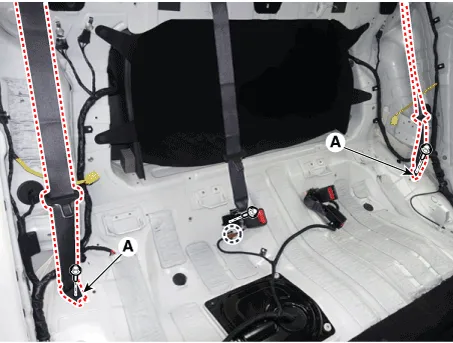

Loosen the mounting bolts and remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.

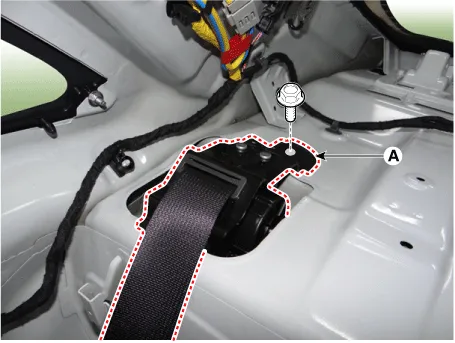

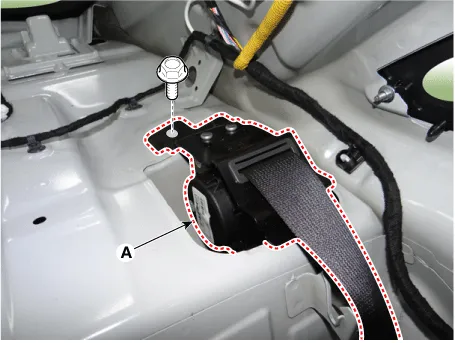

Loosen the mounting bolt and remove the rear seat belt retractor (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

[LH]

[RH]

5.

To install, reverse the removal procedure.

    Components and components location Component Location 1. Rear center seat belt retractor Repair procedures Replacement    • When installing the belt, make sure not to damage the retractor.
