Kia Optima DL3: Trunk Trim / Rear Transverse Trim

Kia Optima DL3 2019-2026 Service and Repair Manual / Body (Interior and Exterior) / Trunk Trim / Rear Transverse Trim

Components and components location

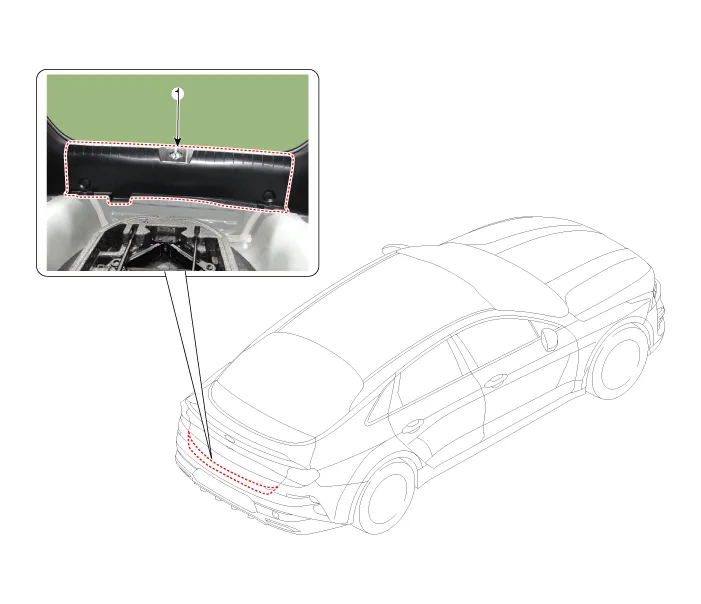

Component Location

1. Rear transverse trim

Repair procedures

Replacement

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Put on gloves to prevent hand injuries.

1.	Remove the trunk lid weatherstrip. (Refer to Trunk Lid - "Trunk Lid Weatherstrip")

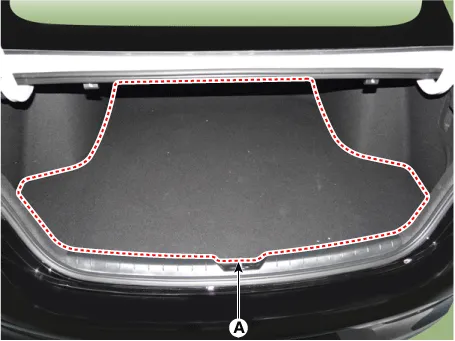

2.	Remove the luggage covering mat (A).

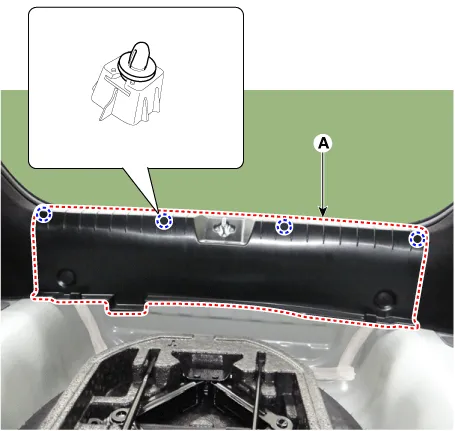

3.	Loosen the mounting clips and remove the rear transverse trim (A).

To install, reverse the removal procedure.

Replace any damaged clips.
