Kia Optima DL3: Panorama Sunroof / Roll Blind Cable Assembly
Repair procedures
| Replacement |
| 1. |
Remove the roof trim. |
| 2. |
Remove the roller blind. (Refer to Panorama sunroof - "Roller Blind") |
| 3. |

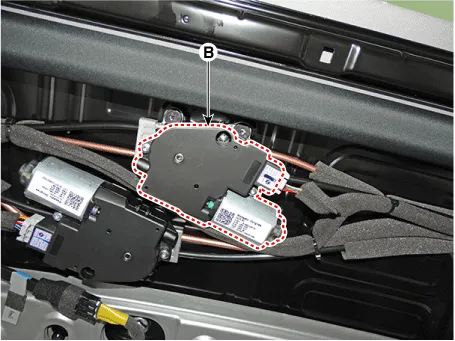

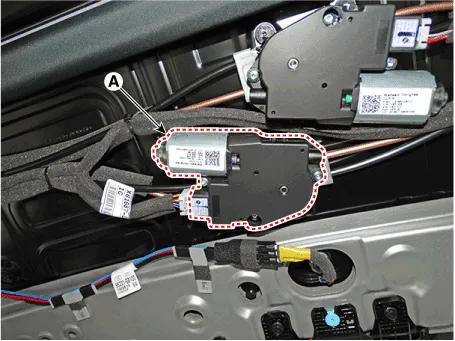

Loosen the mounting screws and remove the movable glass motor (A) roller blind motor (B).
|
| 4. |
Loosen the mounting screws and separate the mechanism rail assembly. |
| 5. |

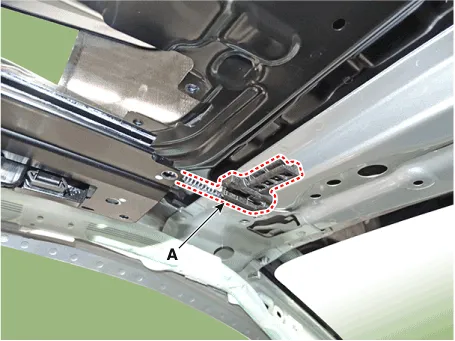

Remove the roller blind cable assembly (A) from mechanism rail assembly.
|
| 6. |
To install, reverse the removal procedure.
|
