Kia Optima DL3: Chassis / Steering Gear Rack, Linkage and Boots
Repair procedures
| Inspection |
| Steering Wheel Play Inspection |
| 1. |
Turn the steering wheel so that the front wheels are facing straight ahead. |
| 2. |

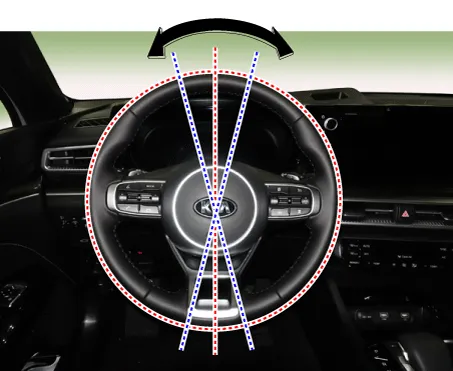

Measure the distance that the steering wheel can be turned without moving the front wheels.
|
| 3. |
If the play exceeds standard value, inspect the steering column, shaft, and linkages. |
