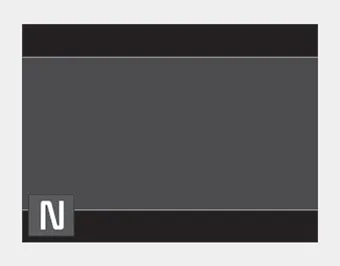

Automatic Transmission Shift Indicator
This indicator displays which automatic transmission shift lever is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Sports Mode : 1, 2, 3, 4, 5, 6
Speedometer The speedometer indicates the speed of the vehicle and is calibrated in kilometers per hour (km/h) and/or miles per hour (mph). Tachometer The tachometer indicates the approximate number of engine revolutions per minute (rpm).
