Kia Optima DL3: Features of your vehicle / Windows

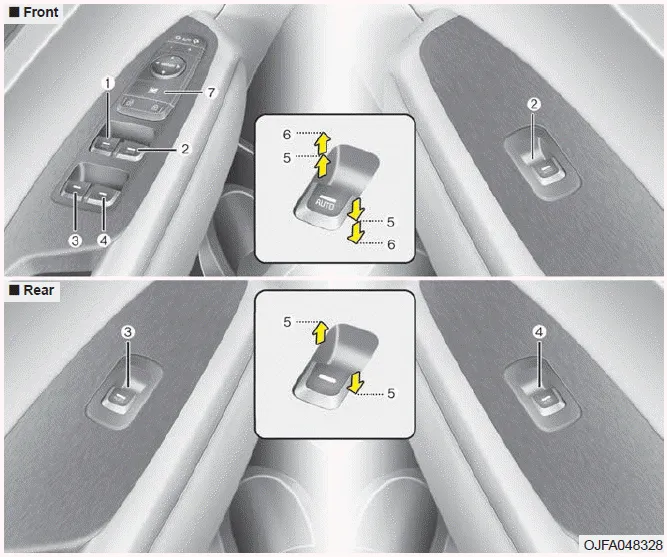

(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down (Driver's and Passenger's window)
(7) Power window lock button
In cold and wet climates, power windows may not work properly due to freezing conditions.
On a vehicle equipped with a smart key, the trunk lock is released with no-touch activation using the Smart Trunk system. How to use the Smart Trunk The trunk can be opened with notouch activation if the following conditions are met: It has been over 15 seconds since all doors closed and locked The smart key is positioned in the detecting area for more than 3 seconds.
The ignition switch must be in the ON position for power windows to operate. Each door has a power window switch that controls the door's window. The driver has a power window lock button which can block the operation of passenger windows.
