Kia Optima DL3: Seat Electrical / Lumbar Support System
Repair procedures
| Inspection |
| 1. |
Remove the front seat back. (Refer to Body - "Front Seat Back Cover") |
| 2. |
Disconnect the connector (A).
|
| 3. |

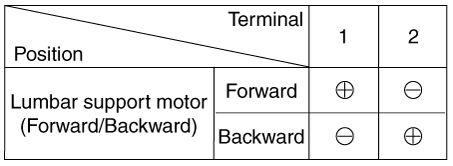

When the battery power is supplied to the motor connector, check the motor for smooth operation.
|
| Removal |
| 1. |
Remove the front seat back. (Refer to Body - "Front Seat Back Cover") |
| 2. |

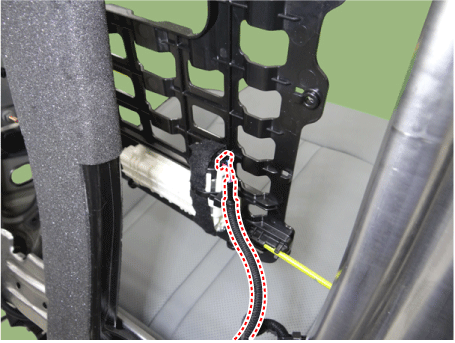

Disconnect the connector (A) from lumbar support motor.
|
| 3. |
Remove the side airbag. (Refer to Restraint - "Side Airbag Module") |
| 4. |

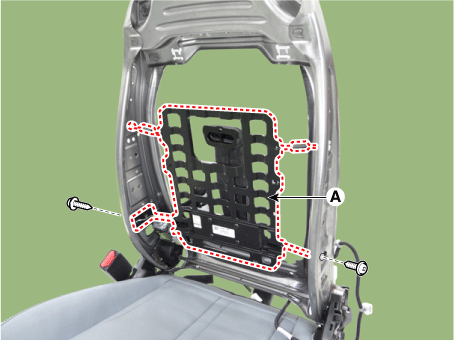

Remove the lumbar support (A) after loosening the screws.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
