Kia Optima DL3: Lighting System / Mood Lamp Unit
Schematic diagrams

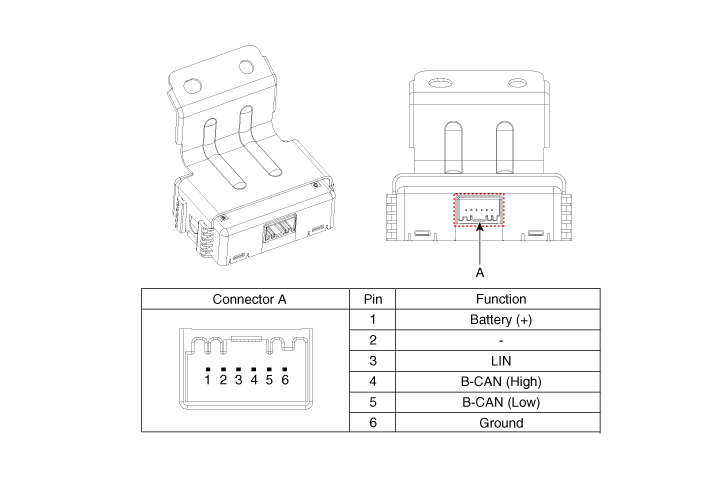

| Connector and Terminal function |
Repair procedures
| Removal |
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. |
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
| 3. |
Remove the crash pad garnish [LH]. (Refer to Body - "Crash Pad Garnish") |
| 4. |

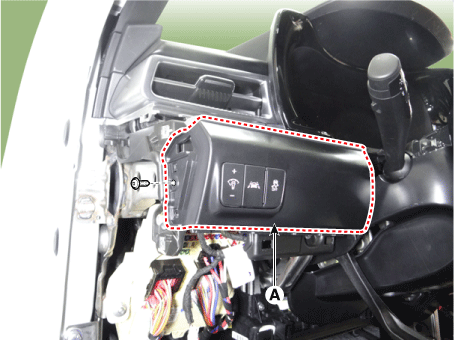

Remove the crash pad lower garnish [LH] (A) by loosening the mounting screw.
|
| 5. |

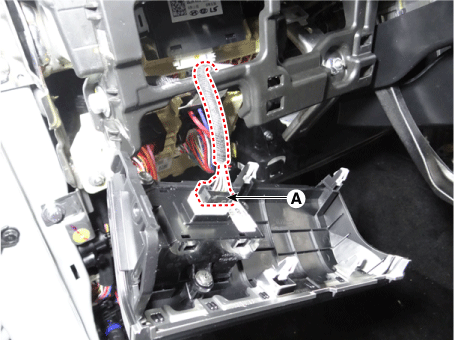

Disconnect the connector (A) from the crash pad lower garnish [LH].
|
| 6. |

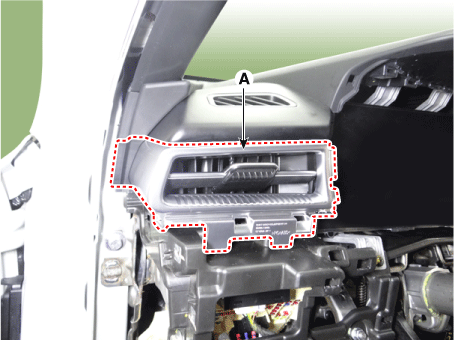

Remove the side air vent (A) by using a flat-tip screwdriver or remover.
|
| 7. |

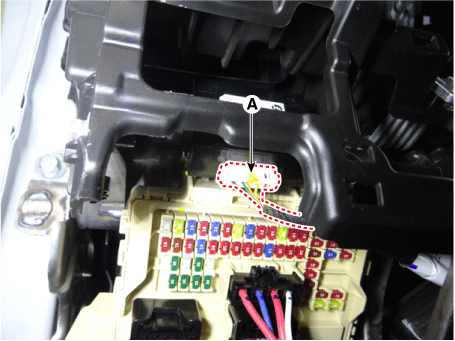

Disconnect the mood lamp unit connector (A).
|
| 8. |

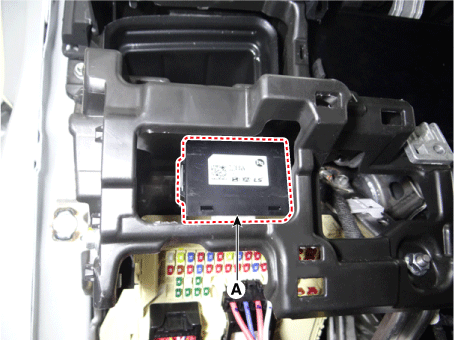

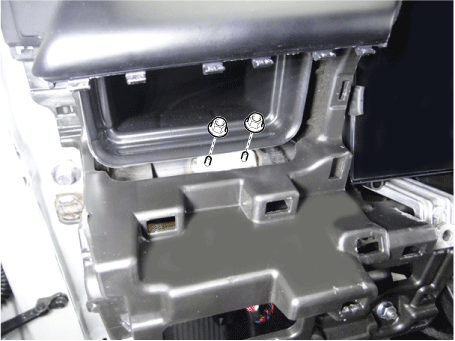

Remove the mood lamp unit (A) by loosening the mounting nuts.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Repair procedures Removal When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Specifications Specifications Items Specifications Rated voltage Front fog lamp switch 5 V Lighting Auto lighting Dimmer & Passing Turn signal lamp Wiper Washer 14.
