| Removal and Installation |
| 1. |

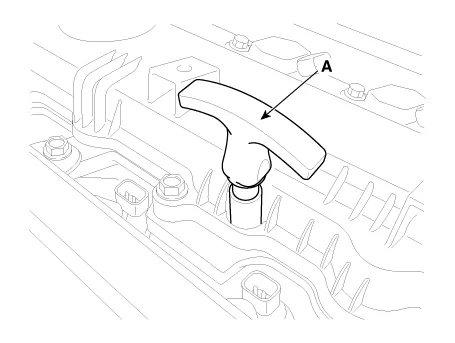

Remove the oil level gauge (A).
|
| 2. |
Install in the reverse order of removal. |
