Kia Optima DL3: Engine Mechanical System / Timing System
Components and components location
| Components |
|

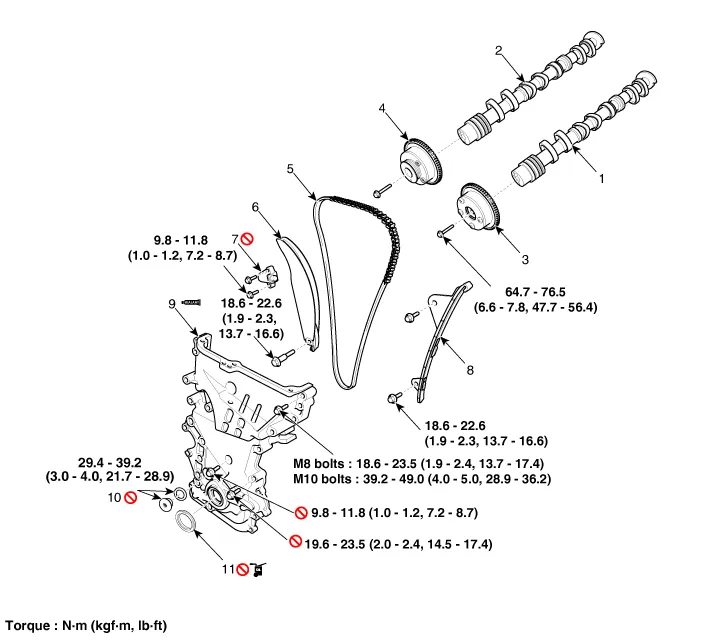

1. Intake camshaft 2. Exhaust camshaft 3. Intake CVVT assembly 4. Exhaust CVVT assembly 5. Timing chain 6. Timing chain tensioner arm |
7. Timing chain tensioner 8. Timing chain guide 9. Timing chain cover 10. Service plug bolt & gasket 11. Front oil seal |
Repair procedures Removal and Installation Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.
Components and components location Components 1. Front oil seal Repair procedures Replacement 1.
