Kia Optima: Panorama Sunroof / Panorama Sunroof Motor

Kia Optima DL3 2019-2021 Service and Repair Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Motor

Schematic diagrams

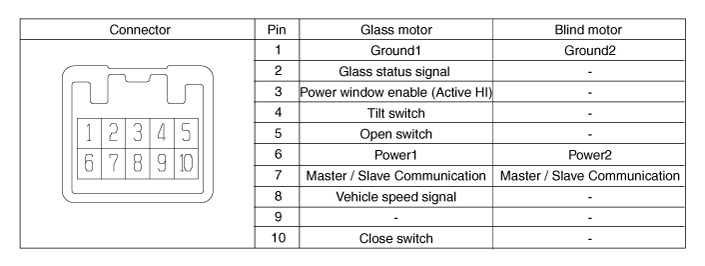

Connector and Terminal Function

Repair procedures
Inspection
1.

Disconnect the negative battery terminal.

2.

Remove the rear pillar trim [LH].

(Refer to Body - "Rear Pillar Trim")

3.

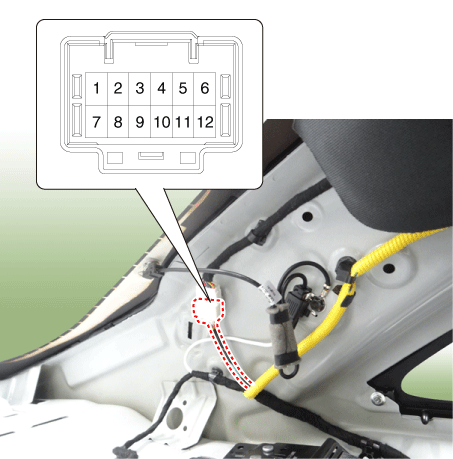

Disconnect the panorama sunroof wiring connector.

4.

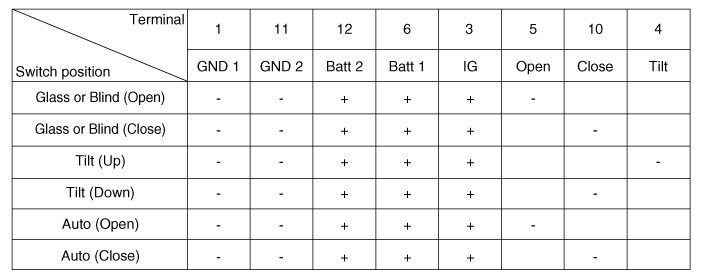

Ground the terminals as below table, and check that the panorama sunroof unit operates.

Removal
1.

Disconnect the negative battery terminal.

2.

Remove the roof trim assembly.

(Refer to Body - "Roof Trim Assembly")

3.

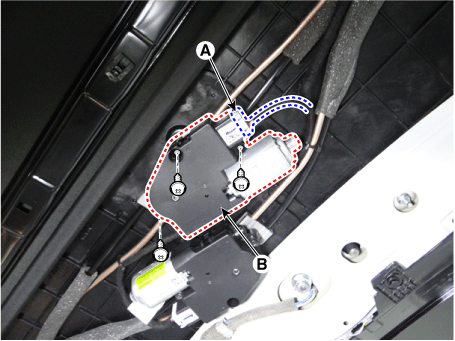

Remove the motor (B) by loosenig the screws after disconnecting the connector (A).

[Glass Motor]

[Blind motor]

Installation
1.

Install in the reverse order of removal.

Adjustment

Panorama Sunroof Reset Procedure

If sunroof glass or roller blind do not operate in automatic mode but operates manually, initialization procedure must be performed as below.



In the following cases, perform initialization as the initial value of sunroof motor has been erased.

If battery power supply is disconnected from the sunroof motor due to battery replacement, discharged battery or fuse replacement when opening/closing the sunroof

If the automatic opening/closing of the sunroof, a one-touch feature, does not function properly

If the sunroof reverses during automatic closing even though there is no object caught in the sunroof (safety feature)

1.

Ignition “ON”.

2.

Ensure the roller blind and sunroof glass are fully closed.

3.

Fully depress and hold the sunroof switch in the closed position and DO NOT release it until the roller blind fully opens and the sunroof glass vent position opens (about 15-20 seconds).

4.

Once the vent opens, release the switch for 1 second and fully depress and hold the sunroof switch in the closed position again until sunroof glass fully opens then closes and the sunshade fully closes.

5.

Release the switch and test for proper operation.
