Kia Optima DL3: Panorama Sunroof / Panorama Sunroof Switch
Schematic diagrams

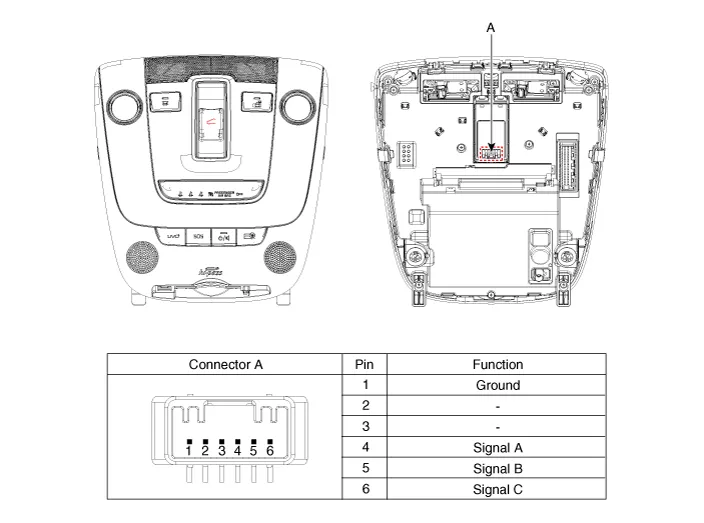

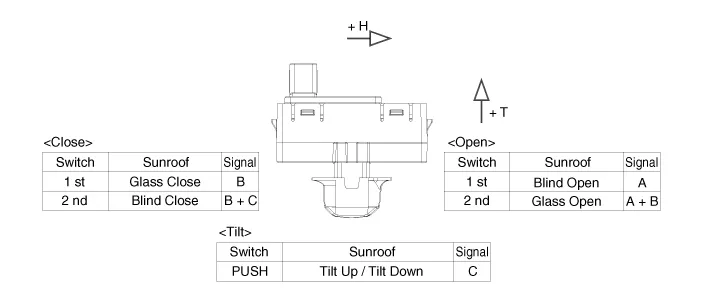

| Connector and Terminal Function |
Repair procedures
| Inspection |
| 1. |
Remove the overhead console lamp. (Refer to Lighting System - "Overhead Console Lamp") |
| 2. |

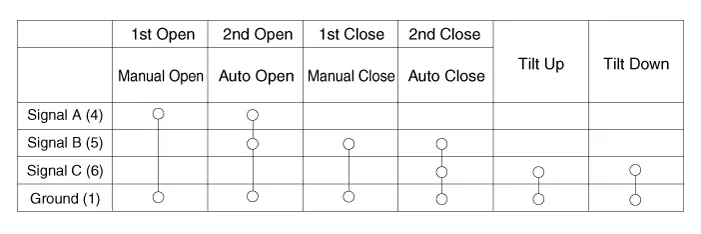

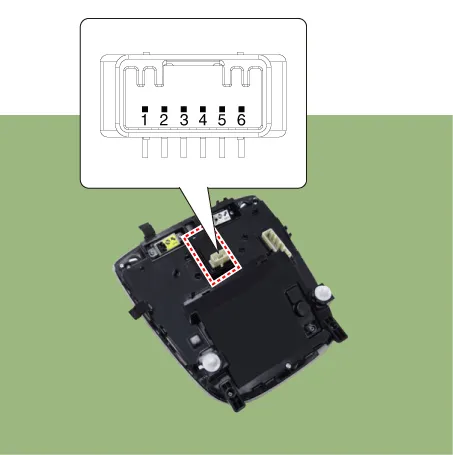

Check for continuity between the terminals in each switch position according to the table.
|
| Replacement |
| 1. |
If the sunroof switch needs to be replaced, replace the overhead console lamp assembly. (Refer to Lighting System - "Overhead Console Lamp") |
Components and components location Component Location 1. Panorama sunroof assembly 2. Panorama sunroof switch 3.
Schematic diagrams Connector and Terminal Function Repair procedures Inspection 1. Disconnect the negative battery terminal.
