Components and components location

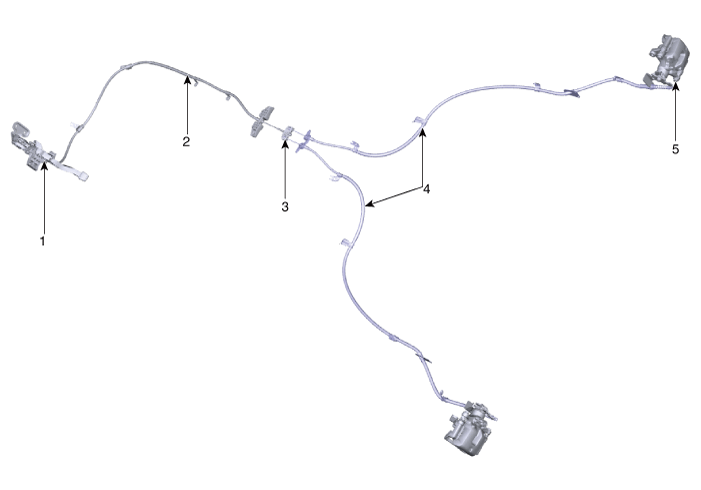

Components

1. Parking brake pedal assembly
2. Front parking brake cable
3. Equalizer assembly

4. Rear parking brake cable
5. Rear caliper assembly

Brake Pad

Repair procedures Replacement Front Brake Pad 1. Disconnect the (-) battery terminal. 2. Remove the front wheel and tire. (Refer to Suspension S ...

Parking Brake Pedal Assembly

Repair procedures Removal 1. Release the parking brake. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") ...
