Kia Optima: Rear Door / Rear Door Side Weatherstrip

Kia Optima DL3 2019-2021 Service and Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Side Weatherstrip

Repair procedures
Replacement

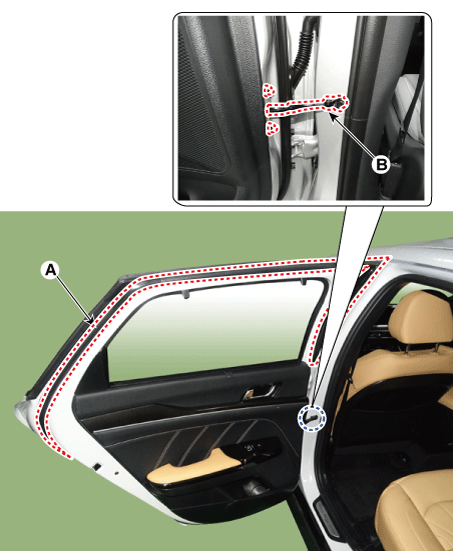

[Rear door side weatherstrip]
1.

Loosen the rear door checker (B) mounting bolt.

Tightening torque :

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m,15.9 - 23.1 lb-ft)

2.

Detach the clips, remove the rear door side weatherstrip (A).

3.

To install, reverse the removal procedure.



Replace any damaged clips.

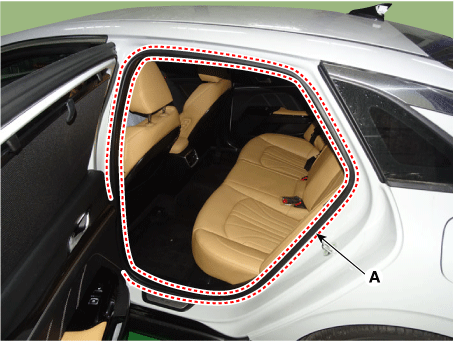

[Rear door body side weatherstrip]
1.

Detach the clips, then remove the rear door body side weatherstrip (A).

2.

To install, reverse the removal procedure.



Replace any damaged clips.
